LED festoon bulb, multivolt 10-30V - energy-saving, 39mm/44mm

LED festoon bulb Multivolt - Universal LED replacement bulb for position lights

The Multivolt LED festoon bulb is the perfect energy-saving replacement bulb for position lights and navigation lights on boats and yachts. Thanks to its wide voltage range of 10-30V, it is suitable for both 12V and 24V electrical systems – one bulb for all applications!

Using only about 10% of the power consumption of a conventional incandescent bulb, this LED festoon bulb saves considerable energy and conserves battery power. The warm white light (2700 Kelvin) provides pleasant, glare-free illumination, while its extremely long lifespan of 20,000 to 30,000 hours drastically reduces maintenance intervals.

Available in two lengths (39mm and 44mm) with 6 or 8 LEDs for different brightness requirements. Ideal for position lights, navigation lights, and interior lighting.

Product features

• Multivolt 10-30V - Universal for 12V and 24V electrical systems
• Extremely energy-efficient - only about 10% consumption compared to an incandescent bulb.
• Long lifespan - 20,000 - 30,000 hours
• Warm white light - 2700 Kelvin for pleasant lighting
• Two lengths available - 39mm and 44mm
• Different brightness levels - 6 or 8 LEDs
• Low power consumption - only 0.08A
• Low maintenance - infrequent bulb changes required

Technical data

Technical specifications

• Voltage: 10-30V (Multivolt)
• Color temperature: 2700 Kelvin (warm white)
• Lifespan: 20,000 - 30,000 hours
• Energy savings: Approximately 90% compared to incandescent bulbs
• Current consumption: 0.08A
• Design: Festoon lamp
• Technology: LED (Light Emitting Diode)

Application areas

• Position lights
• Navigation lights
• Anchor lights
• taillights
• Side lights
• Top light
• Interior lighting
• Cabin lights
• Instrument lighting
• License plate light

Lengths in detail

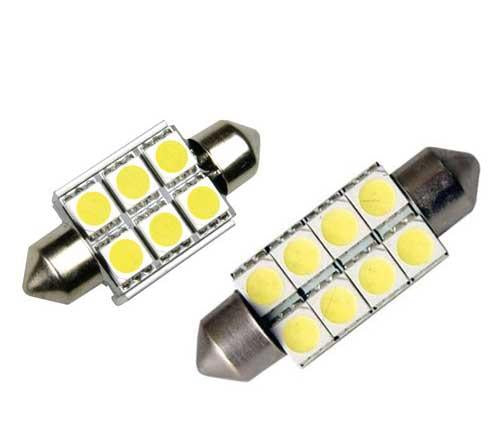

LED1330 (39mm): Compact festoon bulb with 6 LEDs. Ideal for smaller position lights and lights with limited space. Fits many standard navigation lights.

LED1332 (44mm): Slightly longer festoon bulb with 8 LEDs for higher brightness. Perfect for larger position lights and navigation lights that require more light output.

Important: Before purchasing, check the length of the festoon bulb required for your light fixture. The length is measured between the two contacts.

Advantages of multivolt technology

Universally applicable: The wide voltage range of 10-30V makes this LED festoon bulb universally applicable. Whether 12V or 24V electrical system – one bulb fits both systems.

Voltage fluctuation tolerant: The multivolt technology automatically compensates for voltage fluctuations in the vehicle's electrical system. The lamp always shines with constant brightness, regardless of the current vehicle voltage.

Simplified warehousing: You only need one type of lamp for all applications - no separate 12V and 24V lamps are needed anymore.

Important note regarding polarity

Pay attention to polarity: LED bulbs are polarity-dependent. If the bulb does not light up, rotate it 180° in the socket. If the polarity is incorrect, the bulb will not light up, but it will not be damaged.

Simple test: If the bulb doesn't light up after insertion, simply remove it, turn it 180° and reinsert it. It should now light up.

Assembly instructions

Choosing the correct length: Measure the length of your old festoon bulb between the two contacts. Then select the appropriate LED festoon bulb (39mm or 44mm).

Choose brightness: The 44mm version with 8 LEDs offers more brightness than the 39mm version with 6 LEDs. Choose according to your needs.

Easy replacement: Before changing the bulb, switch off the power supply. Gently squeeze the old festoon bulb and pull it out of the socket. Insert the new LED festoon bulb by gently squeezing it and pushing it into the socket.

Check polarity: If the lamp does not light up, turn it 180° in the socket.

Energy efficiency and environment

Multivolt LED festoon bulbs are the environmentally friendly and energy-efficient alternative to conventional incandescent bulbs. Using only about 10% less energy, you not only save energy and extend battery life, but also reduce CO2 emissions. Their extremely long lifespan of 20,000 to 30,000 hours means less waste and less frequent bulb changes – good for the environment and your wallet!
