WICHARD Drop Shackle MXEvo with Hex Socket A4L/D6 Pin 6-10mm for Rope 8-14mm
Regular price
€58,50 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

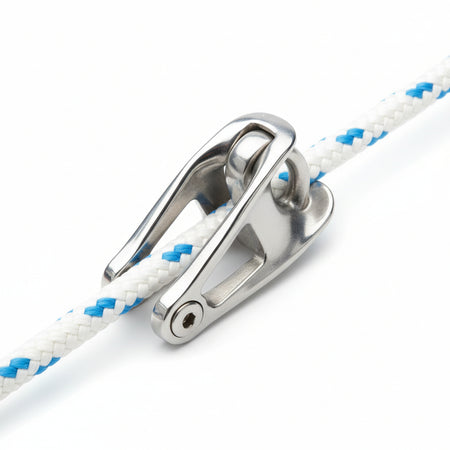

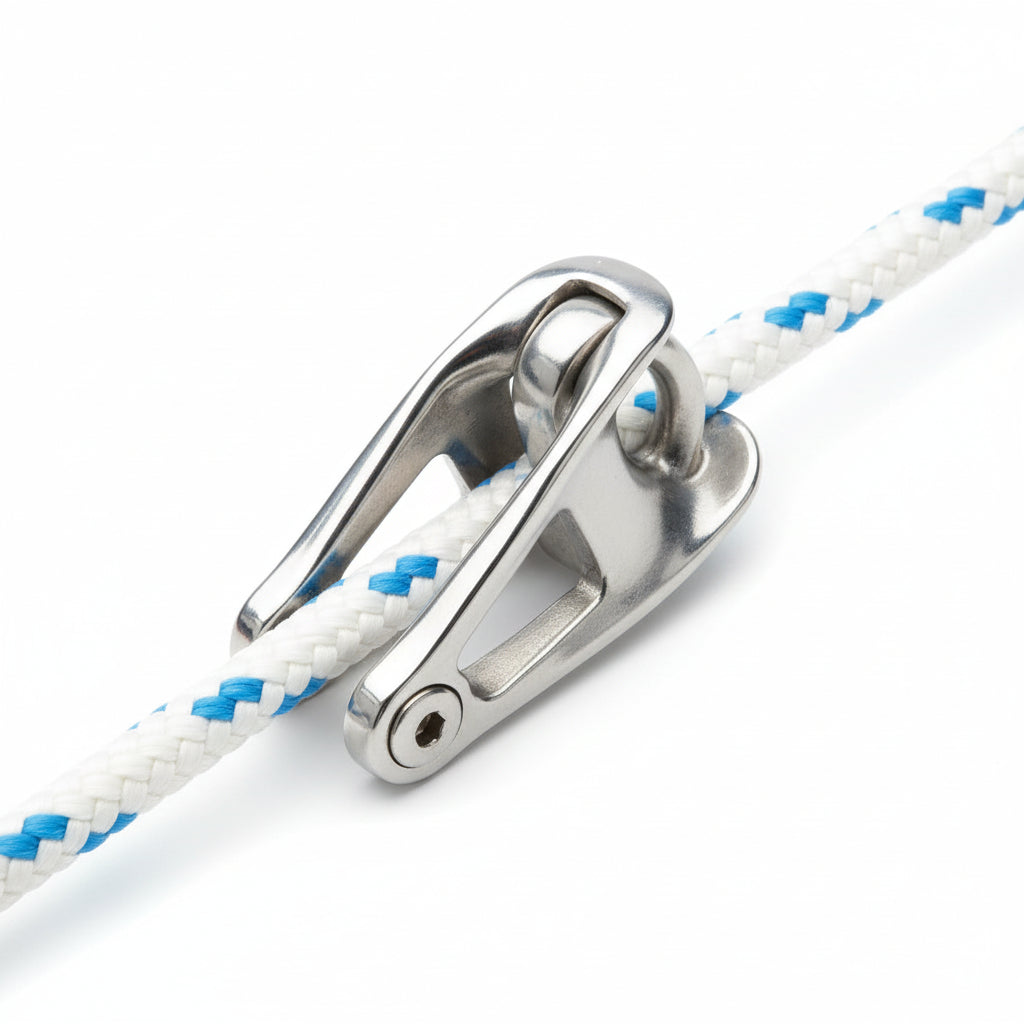

WICHARD MXEvo Drop Shackle with Hex Socket - High-strength forged rope shackle
The WICHARD MXEvo drop shackle is a high-strength, forged rope shackle with a duplex steel hex socket pin for handling heavy loads. This innovative shackle combines the advantages of a classic shackle with optimized geometry for rope and offers exceptional breaking strengths of up to 6000 kg.
Its special design optimally distributes forces and prevents excessive chafing on the rope. The A4L stainless steel hex socket bolt with D6 Dyneema locking ring ensures a secure and durable connection. Recommended for applications where frequent repositioning is not required.
Product features
- High-strength forged drop shackle made of duplex steel
- Hex socket bolt made of A4L stainless steel
- D6 Dyneema safety device for maximum safety
- Available in three sizes for ropes 8-14 mm
- Breaking loads from 2300 to 6000 kg
- Working loads (WL) from 1040 to 2640 kg
- Optimized geometry prevents chafing on the rope.
- Force distribution through special design
- Premium WICHARD MXEvo quality
| Item No. | Tau-Ø | Ø Pin | interior length | Inside width | BRL | WL |
|---|---|---|---|---|---|---|
| SR11613 | 8 mm | 6 mm | 26 mm | 13 mm | 2300 kg | 1040 kg |
| SR11614 | 10 mm | 8 mm | 28 mm | 18 mm | 4100 kg | 1760 kg |
| SR11615 | 14 mm | 10 mm | 34 mm | 22 mm | 6000 kg | 2640 kg |
Technical specifications
Series: MXEvo | Body Material: Forged Duplex Steel | Bolt Material: A4L Stainless Steel | Safety Lock: D6 Dyneema | Bolt Type: Hex Socket | Rope Diameter: 8-14 mm (depending on variant) | Pin Diameter: 6-10 mm | Breaking Load: 2300-6000 kg | Working Load: 1040-2640 kg
Available variants
This WICHARD MXEvo drop shackle is available in three sizes: The smallest version (SR11613) for 8mm rope with 6mm pin and 2300kg breaking load, the medium version (SR11614) for 10mm rope with 8mm pin and 4100kg breaking load, and the largest version (SR11615) for 14mm rope with 10mm pin and an impressive 6000kg breaking load.
