WICHARD Triple Block 18mm – Plain or Ball Bearing – Fixed Eye
- Pickup available in Bad Ischl
- Brand-name products with full technical data
- Personal expert advice: office@bootsshop.at
Product details

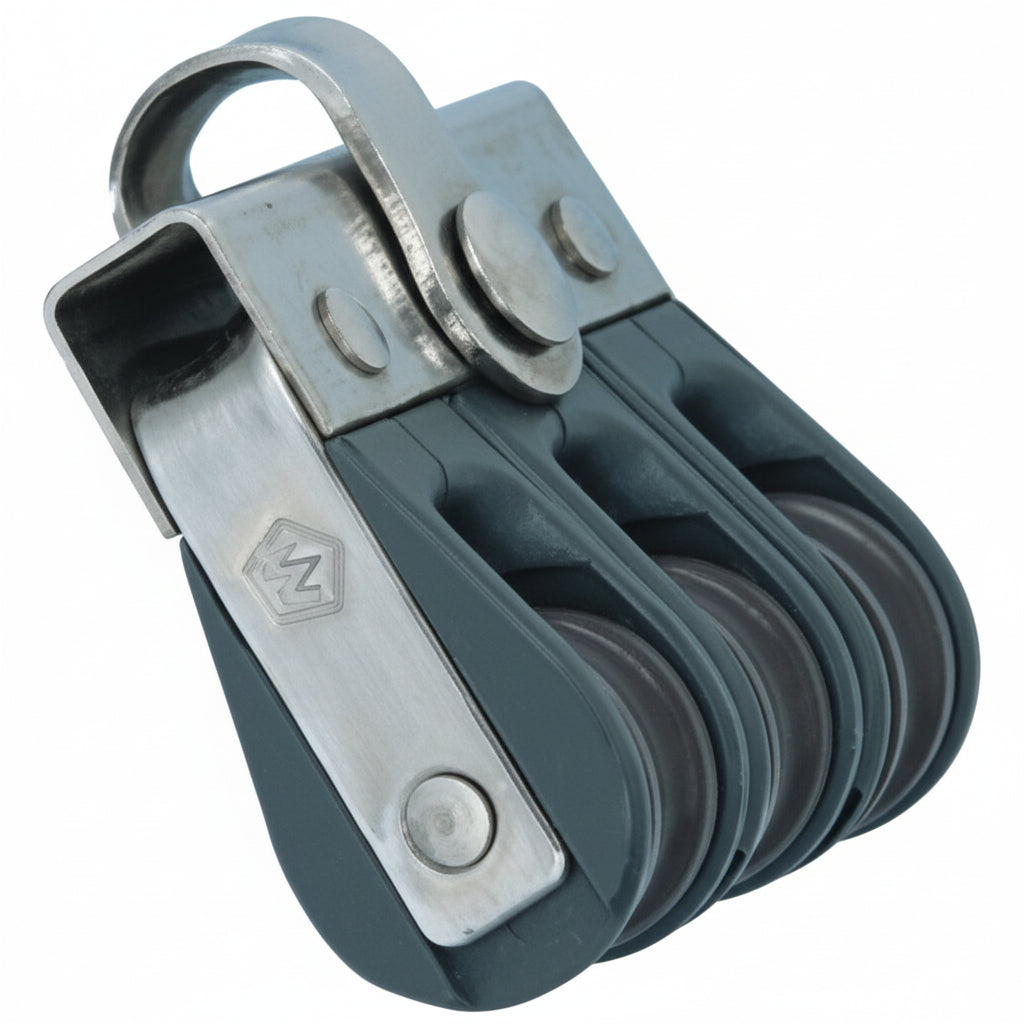

WICHARD Triple Block with Fixed Eye – Compact High-Performance Block for Light Maneuvers
The WICHARD triple block with fixed eye combines French precision with maritime reliability. Available in plain bearing or ball bearing versions, this compact triple block with an 18 mm sheave diameter offers optimal performance for ropes from 4–6 mm. The fixed eye allows for secure attachment to shackles, swivels, or directly to fittings.
Whether for light halyards, sheets, or complex tackle systems – this block impresses with its robust construction, precise bearings, and a breaking load of 900 kg. Its compact dimensions (45 × 42 mm) make it particularly space-saving and ideal for confined installation situations on board.
Product features
- Triple block with fixed eye
- Disc diameter: 18 mm
- Suitable for ropes Ø 4–6 mm
- Optionally with plain bearings or ball bearings
- Breaking load (BRL): 900 kg
- Compact design: 45 mm length × 42 mm width
- High-quality WICHARD quality – Made in France
| Article number | storage | Disc diameter (mm) | Rope diameter (mm) | Length (mm) | Width (mm) | BRL (kg) |
|---|---|---|---|---|---|---|
| SR60313 | plain bearing | 18 | 4–6 | 45 | 42 | 900 |
| SR70313 | Ball bearing | 18 | 4–6 | 45 | 42 | 900 |
Technical specifications
Type: Triple block | Attachment: Fixed eye | Sheave diameter: 18 mm | Rope diameter: 4–6 mm | Dimensions: 45 × 42 mm | Breaking load: 900 kg | Material: Stainless steel/High-performance plastic | Manufacturer: WICHARD
Variants
This triple block is available in two versions: SR60313 (plain bearing) for low-maintenance standard applications and SR70313 (ball bearing) for maximum smoothness and efficiency under load.
