Hose barb with internal thread, brass, 58 mm - Various sizes
Regular price
€3,40 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

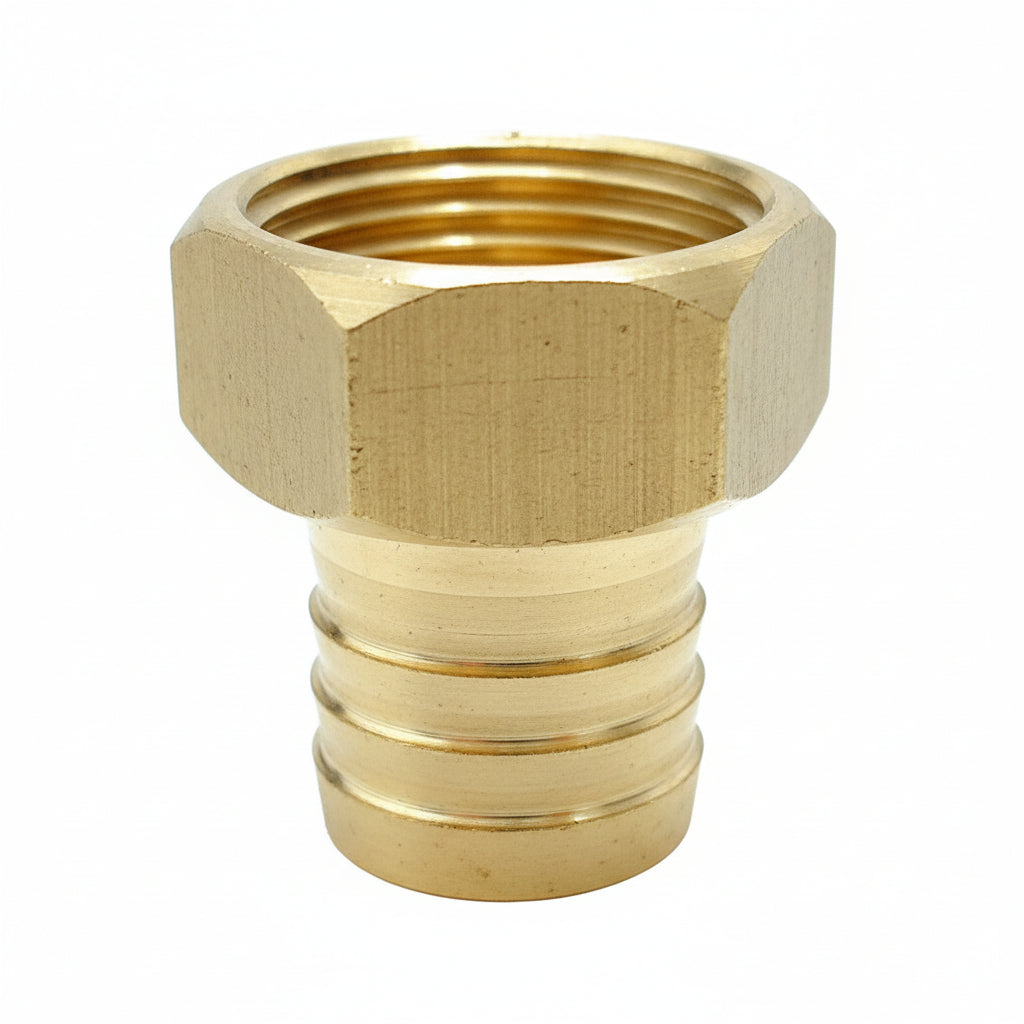

Hose barb with internal thread made of brass 58
High-quality brass hose barbs with internal thread (58) for professional hose connections. These robust hose connectors enable a secure and reliable connection of hoses to tanks, pipes, or other components. The internal thread allows for attachment to an external threaded fitting. Ideal for boat and yacht building as well as industrial applications.
Brass grade 58 offers good corrosion resistance, high strength, and excellent machinability. The hose fittings are available in various sizes with BSP (British Standard Pipe) threads and provide a reliable solution for water, fuel, and other fluid systems. The ribbed surface ensures a secure hose connection.
- Material: Brass 58 - corrosion-resistant and robust
- Internal thread for external thread connection
- BSP thread (British Standard Pipe)
- Ribbed surface for secure hose retention
- High mechanical strength
- Various sizes from 3/8" to 2"
- Versatile
- Temperature range: -20°C to +120°C
| Item No. | R inch | R approx. mm | Øi1 mm | for hose diameter |
|---|---|---|---|---|
| FZ1809 | 3/8" | 16.6 | 6.5 | 3/8" = 9 mm |
| FZ1813 | 1/2" | 20.9 | 9.8 | 1/2" = 13 mm |
| FZ181316 | 1/2" | 20.9 | 13.0 | 5/8" = 16 mm |
| FZ181319 | 1/2" | 20.9 | 15.5 | 3/4" = 19 mm |
| FZ1819 | 3/4" | 26.6 | 15.5 | 3/4" = 19 mm |
| FZ1825 | 1" | 33.3 | 20.0 | 1" = 25 mm |
| FZ1832 | 1 1/4" | 41.8 | 27.5 | 1 1/4" = 32 mm |
| FZ1838 | 1 1/2" | 48.0 | 35.3 | 40 mm |
| FZ1850 | 2" | 57.0 | 44.0 | 2" = 50 mm |
Technical specifications: Material brass 58, internal thread, BSP thread, ribbed surface for secure hose retention, corrosion-resistant, temperature range -20°C to +120°C.
These high-quality brass hose barbs are available in nine different size combinations, covering hose diameters from 9 to 50 mm. The BSP female threads, from 3/8" to 2", ensure a secure connection to male threaded fittings. Please select the appropriate size combination for your installation.
