JABSCO Pressure Equalizing Tank - Consistent Water Jet without Pulsation

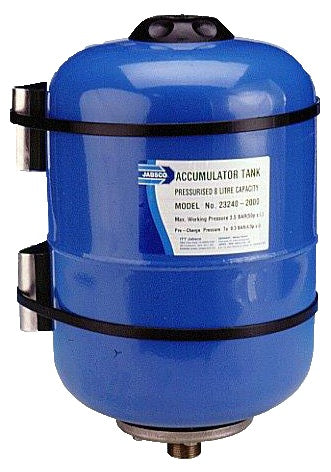

The JABSCO pressure equalization tank ensures a consistent water flow, reduces noise and pulsation in pressurized water systems, and protects the microswitch in a pressure switch system. These pre-pressurized equalization tanks are available in three different sizes – from the compact 0.6-liter version for tight spaces to the large 8.0-liter tank for larger systems starting at PAR-Max 4.

The pressure equalization tank is an essential accessory for any pressurized water system on board. It compensates for pressure fluctuations that occur when the pump switches on and off, ensuring a constant, pulsation-free water flow. This not only increases comfort at the tap but also significantly extends the service life of the pump and pressure switch. The pre-pressurized diaphragm ensures optimal function immediately after installation.

• Ensures a consistent, pulsation-free water jet
• Reduces noise and vibrations in the system
• Protects microswitches and extends pump lifespan
• Membrane pressurized with pre-pressure
• 3 sizes for different applications
• Easy installation with hose connections

Technical specifications: Type: Pressure equalization tank with pre-pressurized diaphragm, Volumes: 0.6 / 1.0 / 8.0 liters, Hose connections: 13 mm (1/2") or 19 mm (3/4"), Function: Pressure equalization, pulsation reduction, pressure switch protection, Application: Pressurized water systems with PAR-Max pumps

📄 Technical data sheets:

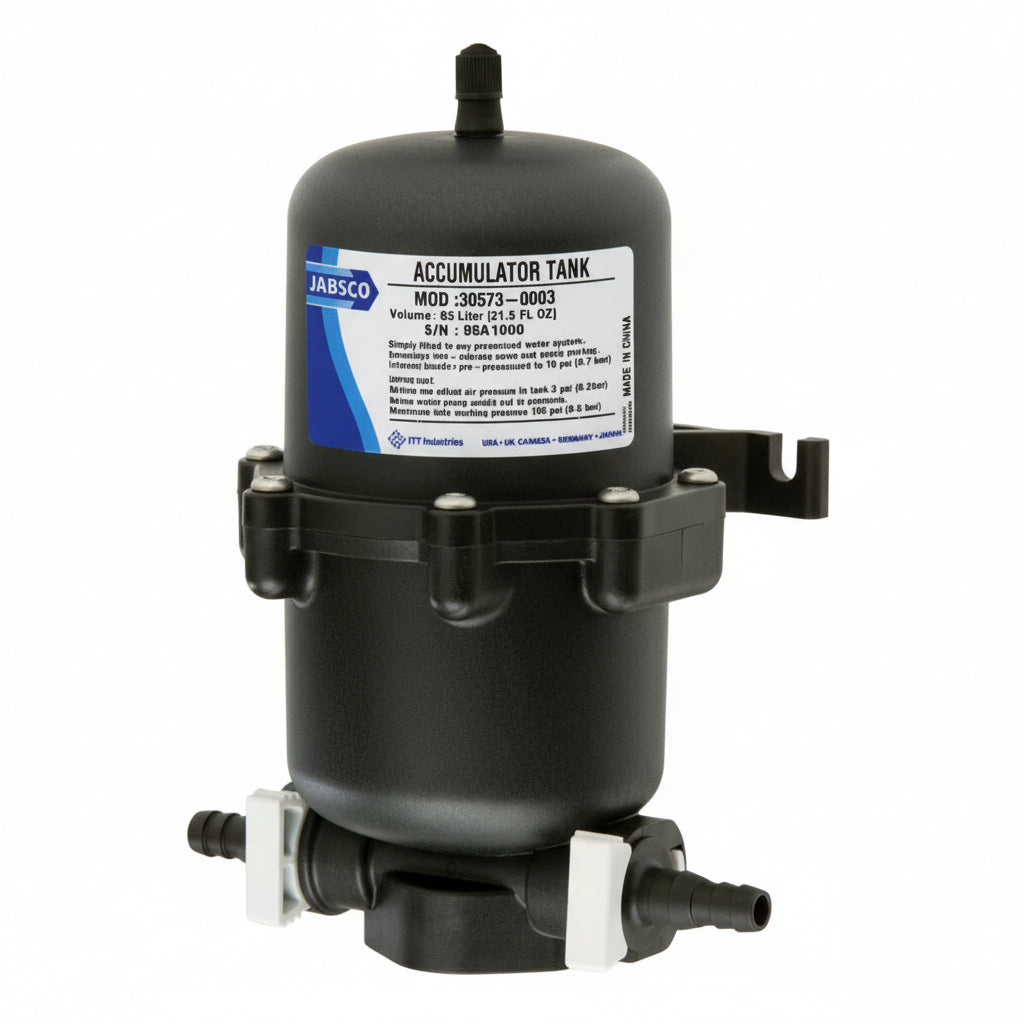

Data sheet 30573-0003 - 0.6 liters (PDF)

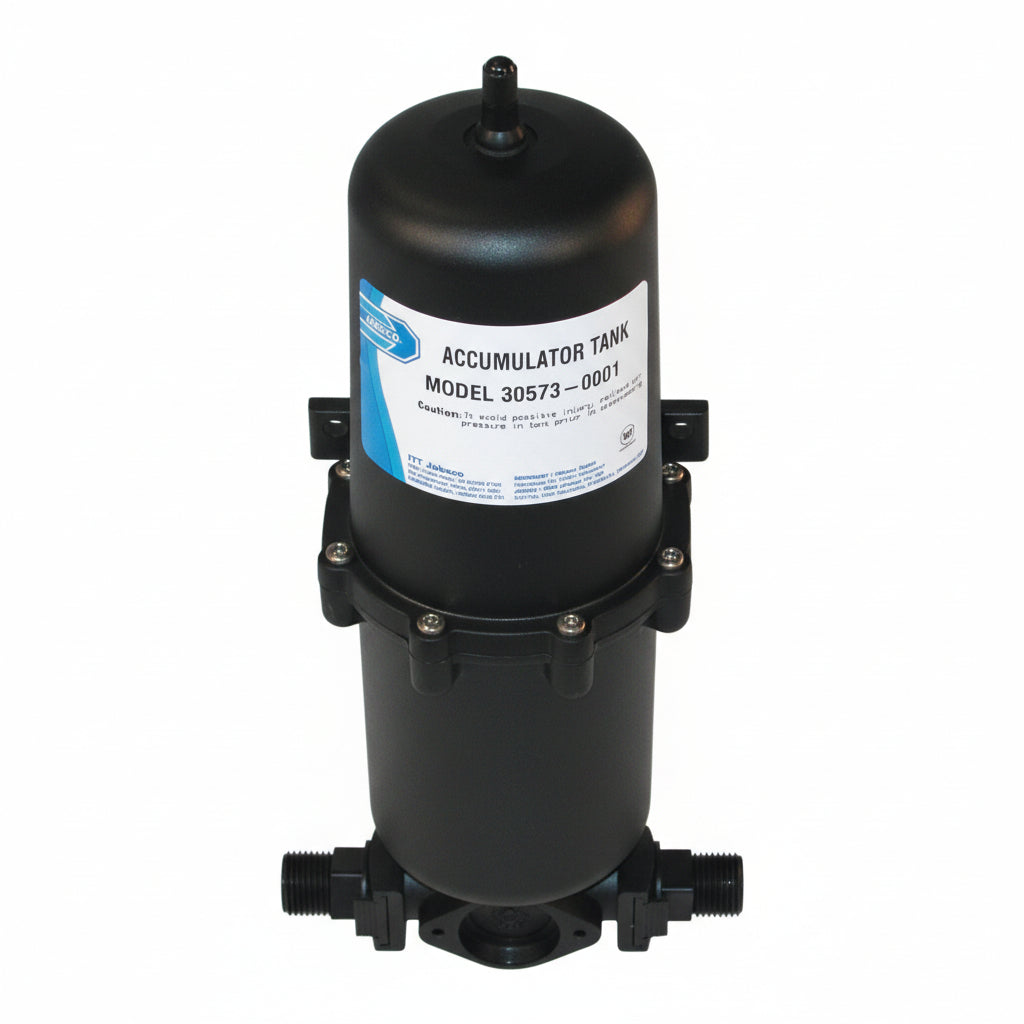

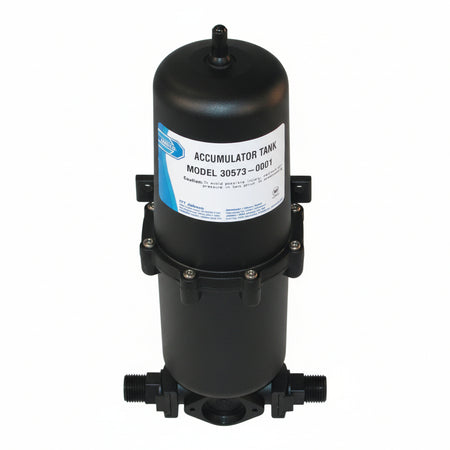

Data sheet 30573-0000 - 1.0 liter (PDF)

The JABSCO pressure equalization tank is the ideal addition to any pressurized water system on board. By compensating for pressure fluctuations, it ensures a constant, pleasant water flow without annoying pulsations. This not only increases comfort when showering or washing hands, but also protects the pump and significantly extends its lifespan. Choose the right option for your system from three sizes – from the compact 0.6-liter version for small boats to the large 8.0-liter tank for demanding installations.
