Stainless steel AISI 316 pipe end cap - height adjustable for 22mm/25mm
- Pickup available in Bad Ischl
- Brand-name products with full technical data
- Personal expert advice: office@bootsshop.at
Product details

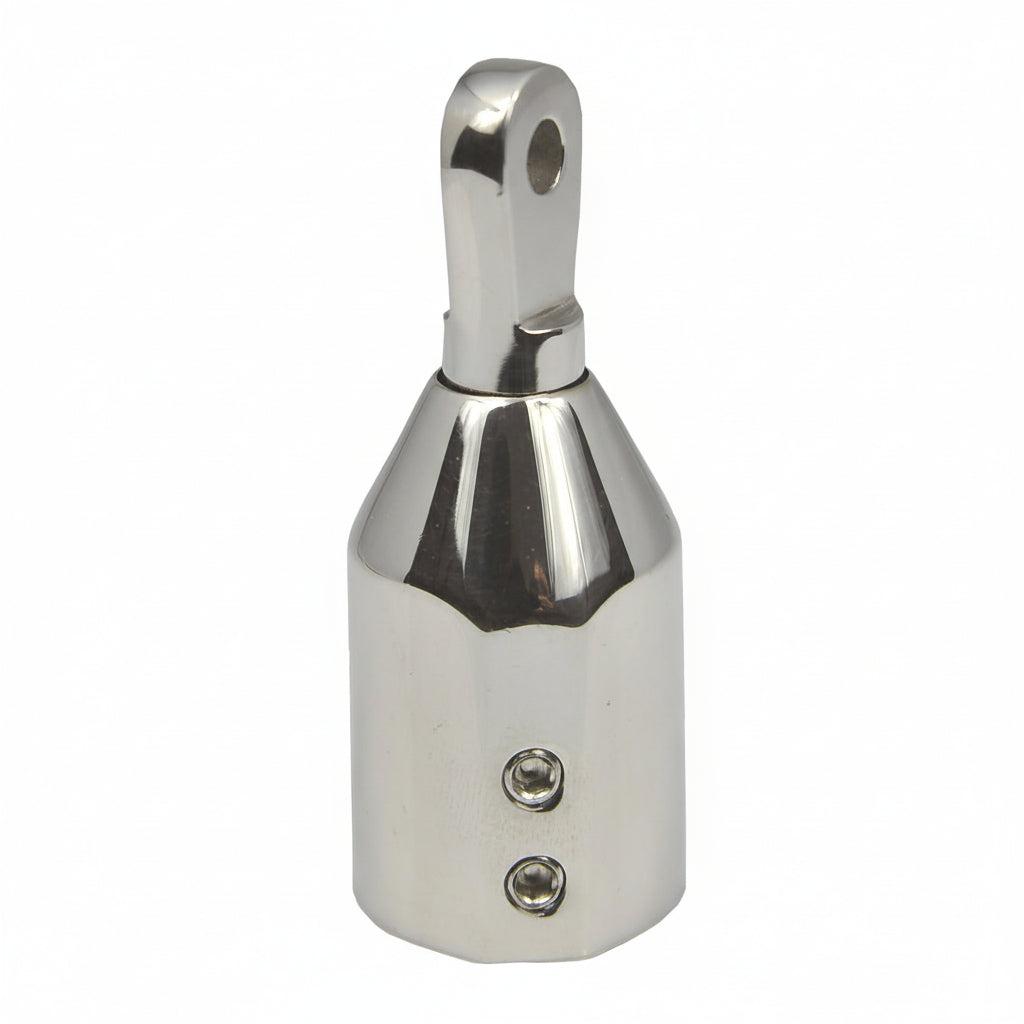

Pipe end cap stainless steel AISI 316 - height adjustable and adjustable
The height-adjustable tube end cap, made entirely of AISI 316 stainless steel with an eyelet, is the professional solution for the adjustable termination of convertible top frames. Featuring a 68 mm long eyelet insert for flexible height adjustment – ideal for sprayhoods, bimini tops, and folding convertible tops with individual requirements.
Product features
- Made entirely of AISI 316 (A4) stainless steel - Highest corrosion resistance for marine applications
- Height adjustable - Adjustable height for individual customization
- Long eyepiece - 68 mm length for flexible adjustment
- With eye - Integrated mounting option
- Two pipe diameters - For 22mm and 25mm pipes
- Saltwater resistant - Ideal for continuous use on boats
Available versions
| Item No. | Pipe Øa/mm | thread | Eye size/mm | Aug-Ø/mm |
|---|---|---|---|---|
| EK94922 | 22 mm | metric | 7 mm | 6.6 mm |
| EK94925 | 25 mm | metric | 7 mm | 6.6 mm |
Application areas
- Height-adjustable end cap for sprayhood poles
- Bimini top pipe ends with individual adjustment
- Convertible top end pieces with adjustment
- Sunshade frame with adjustable height
- Cover tubes with variable mounting height
- All applications with height-adjustable pipe end caps
Material advantage of stainless steel AISI 316 (A4)
AISI 316 stainless steel (also known as A4 or V4A) contains molybdenum and therefore offers significantly higher corrosion resistance than standard stainless steel. Since the entire end cap is made of AISI 316, it offers maximum durability for:
- Continuous saltwater contact
- Aggressive marine environments
- Long-term outdoor applications without maintenance
- Professional boat and yacht equipment
- Areas subject to mechanical stress
Height adjustable - Flexible adjustment
Adjustable height: Unlike standard end caps with a fixed eye, this version features a height-adjustable eye insert. This allows for individual adjustment of the mounting height.
68 mm long eyepiece: The long eyepiece offers a large adjustment range for flexible height adjustment. Ideal for different mounting positions or subsequent adjustments.
Made entirely of stainless steel: Both the end cap and the adjustable eyepiece are made entirely of AISI 316 stainless steel - no compromises on quality.
Technical details
Thread: Metric - For both versions.
Eyepiece length: 68 mm - For a large adjustment range.
Eye width: 7 mm - For reliable recording.
Eye diameter: 6.6 mm - For bolts or screws.
Material: Made entirely of AISI 316 stainless steel.
Assembly and use
The height-adjustable pipe end cap is slid onto the pipe end and securely fastened with the setscrew. The eyelet can be adjusted to the desired height. The eyelet allows connection to other fittings or fixing points via a bolt or screw.
- Slide on the end cap - Slide it onto the end of the pipe.
- Adjusting the height - Adjusting the eyepiece to the desired height
- Secure - Tighten securely with a setscrew.
- Connect - guide bolt through eye
Advantages
- Highly corrosion-resistant - Made entirely of AISI 316 stainless steel
- Height adjustable - Adjustable height for individual customization
- Long eyepiece - 68 mm for a large adjustment range
- Flexible - Suitable for various mounting positions
- Two pipe diameters - For 22mm and 25mm pipes
- Professional quality - proven in maritime use
Ideal for
- Sailing yachts with individual sprayhood requirements
- Motorboats with bimini top
- Boats with variable mounting heights
- Professional boat builders and sailmakers
- Repair and maintenance of convertible top systems
- New installation of convertible top frames with height adjustment
