BARTON
BARTON TUPHblox violin block Tufnol 38/58mm - 13mm rope
- Pickup available in Bad Ischl
- Brand-name products with full technical data
- Personal expert advice: office@bootsshop.at
Product details

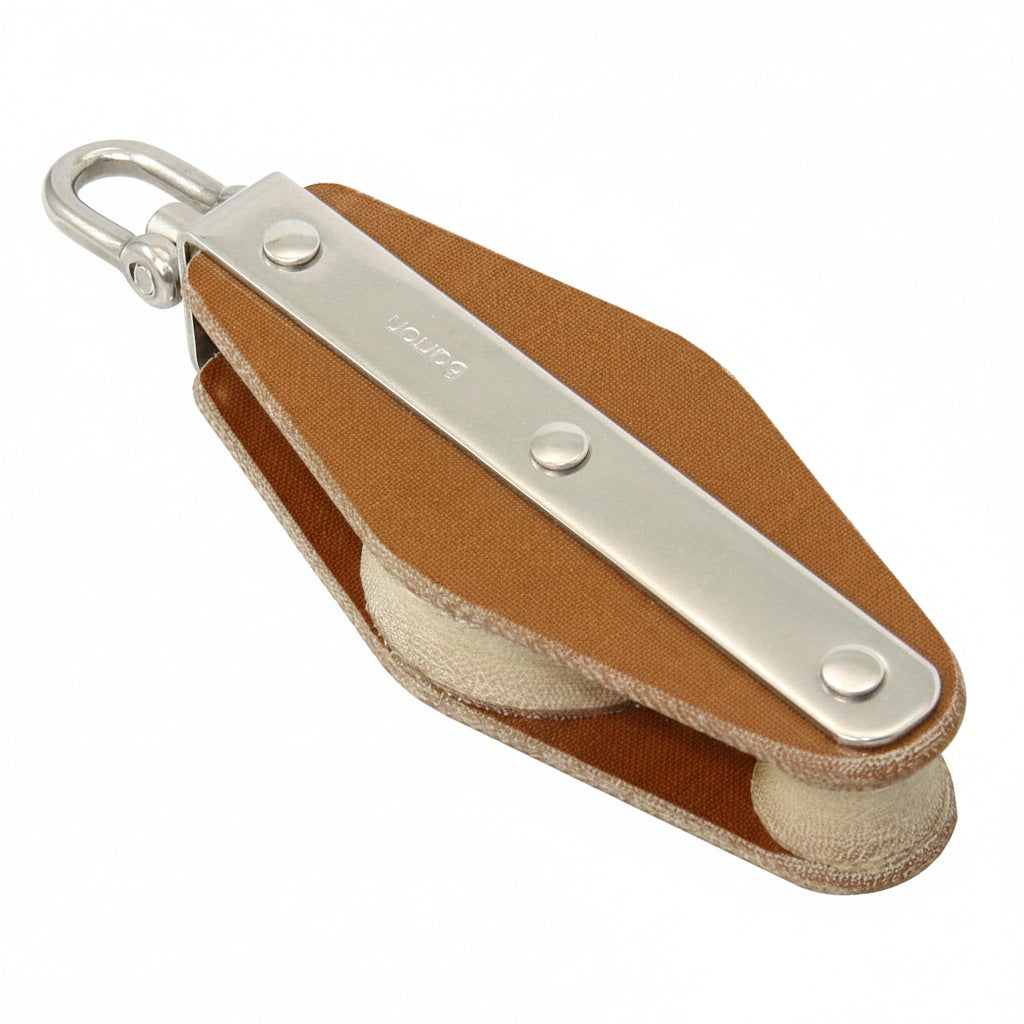

BARTON TUPHblox Violin Block made of Tufnol® - Heavy-duty violin blocks
BARTON TUPHblox violin blocks, made from high-strength Tufnol®, offer maximum load capacity at minimum weight. These premium blocks are available with or without a swivel shackle and are perfectly suited for demanding rigging applications on sailing yachts and racing boats.
The proven Tufnol® material guarantees excellent strength, corrosion resistance, and a long service life, even under extreme conditions. The precision-manufactured discs run smoothly and with minimal wear.
- Material: High-strength Tufnol®
- Optionally with or without a lower bail (swivel shackle)
- Rope diameter: 13mm
- Disc size: 38 / 58 mm
- Breaking load (BRL): 770 kg
- Working load (WL): 385 kg
- Smooth-running, low-wear discs
- Corrosion-resistant and durable
| Article number | execution | Ø Tau | Ø disc | BRL | WL |
|---|---|---|---|---|---|
| BTT03430 | without underwire | 13 mm | 38 / 58 mm | 770 kg | 385 kg |
| BTT03431 | with underwire | 13 mm | 38 / 58 mm | 770 kg | 385 kg |
Technical specifications: Material Tufnol®, sheave design smooth-running, lower bail optionally as swivel shackle, rope diameter 13mm, sheave diameter 38/58mm, breaking load 770kg, working load 385kg.

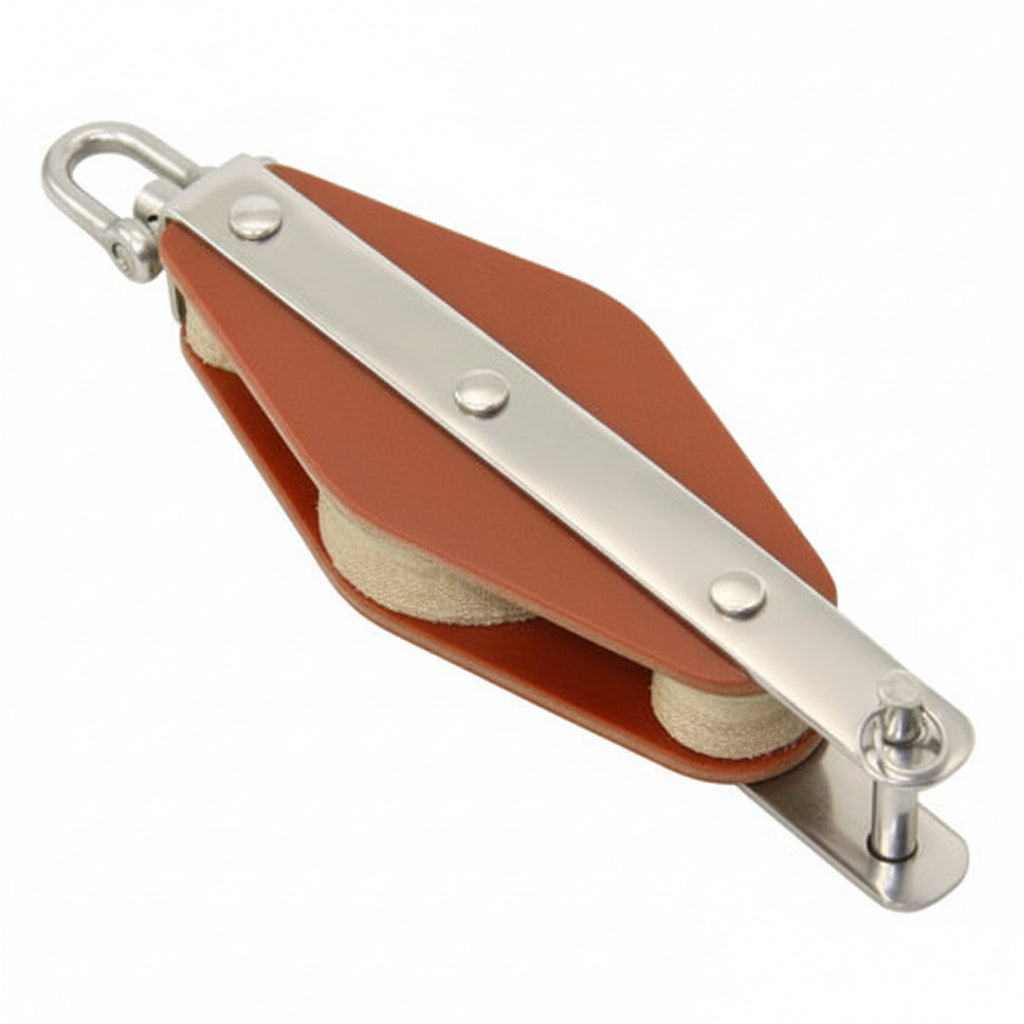

The BARTON TUPHblox violin blocks are available in two versions: BTT03430 without underbar for direct attachment and BTT03431 with swivel shackle for rotating attachment.
