BARTON switchable ratchet block with ball bearing - 55mm roller for ropes up to 10mm
Regular price
€117,50 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

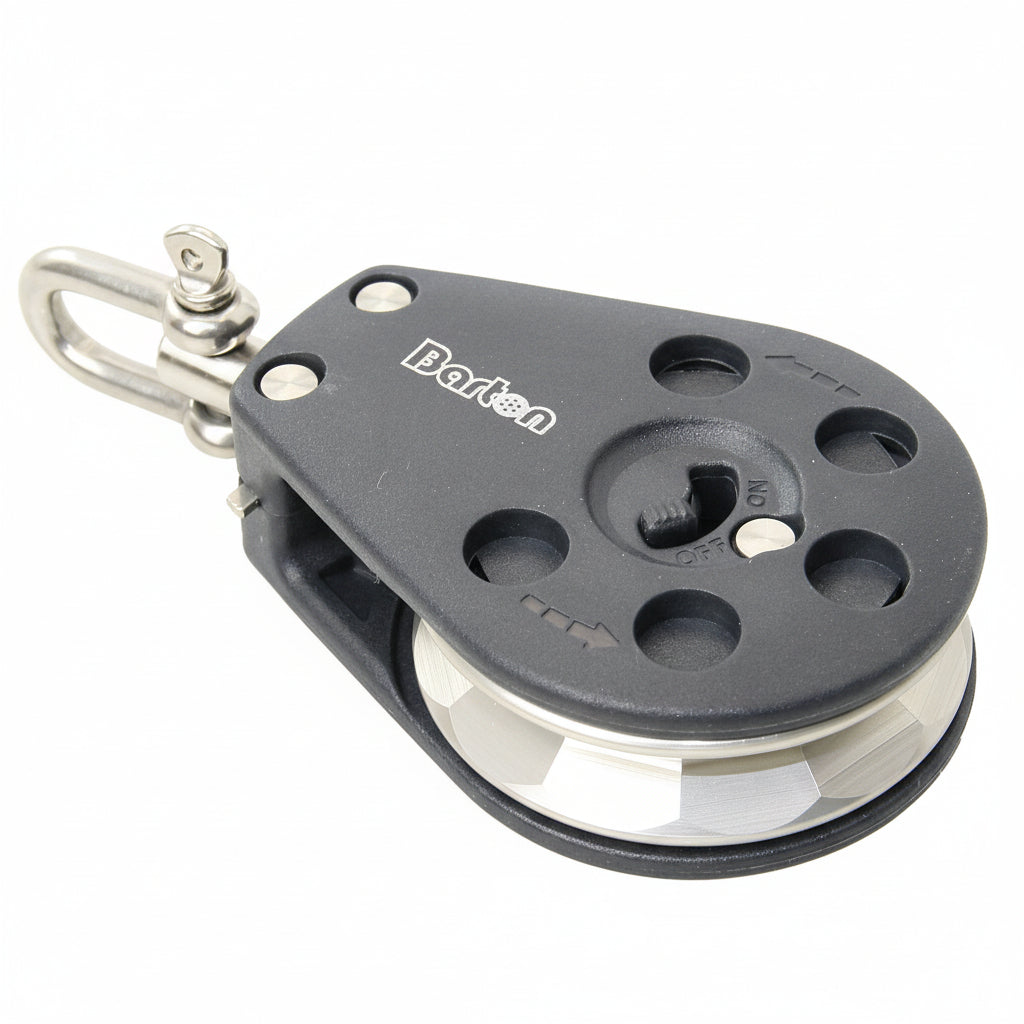

BARTON Switchable Ratchet Block with Ball Bearing - Professional Reversible Ratchet Block
The BARTON switchable ratchet block is a high-quality reversible ratchet block with an aluminum disc and a switch that can be operated from either side. With a breaking load of 1200 kg and suitable for ropes up to 10 mm in diameter, this ratchet block is perfect for demanding sailing applications on yachts and sailboats.
For versatile use in free-running or ratchet mode. The SwivelStop allows the shackle to rotate freely or be locked in 90° increments. The ball bearing ensures reliable operation under high loads.
Product features
- Reversible ratchet block with freewheel and ratchet modes

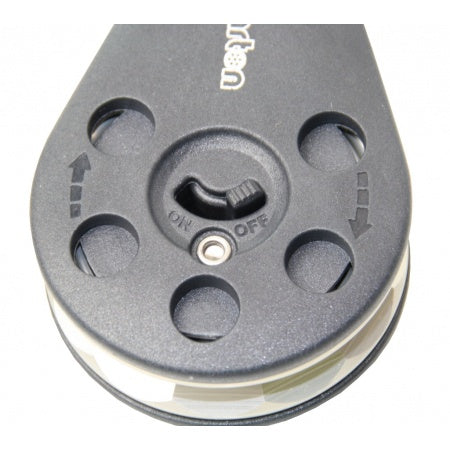

- Dual-sided switch

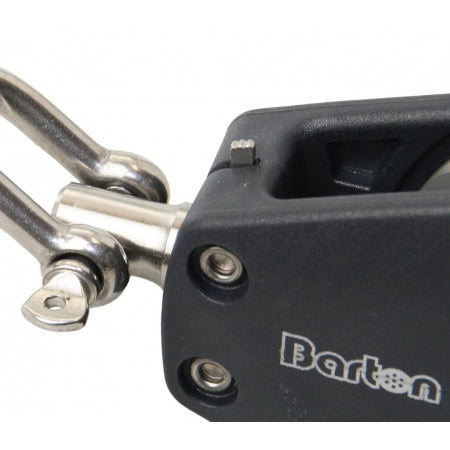

- SwivelStop - Shackle can rotate freely or be locked every 90°
- Aluminum disc, 55mm diameter, 14mm width
- Ball bearings for reliable operation
- Breaking load 1200 kg for high load capacity
- Suitable for ropes up to 10mm in diameter
- Length 115mm
- Compact and robust design
| Article number | Roll (mm) | Rope diameter (mm) | Length (mm) | Breaking load (kg) | Weight (g) |
|---|---|---|---|---|---|
| BT90500 | 55 x 14 | 10 | 115 | 1200 | 145 |
Technical specifications
Disc diameter 55mm, disc width 14mm, for ropes up to 10mm, breaking load 1200kg, ball bearing, material: aluminum and composite, reversible ratchet block with SwivelStop.
This BARTON ratchet block combines functionality and durability. The ambidextrous switch allows for quick switching between free-spool and ratchet modes. The SwivelStop provides additional mounting flexibility. Ideal for sheets, halyards, and other onboard applications where a ratchet function is required.
