Description

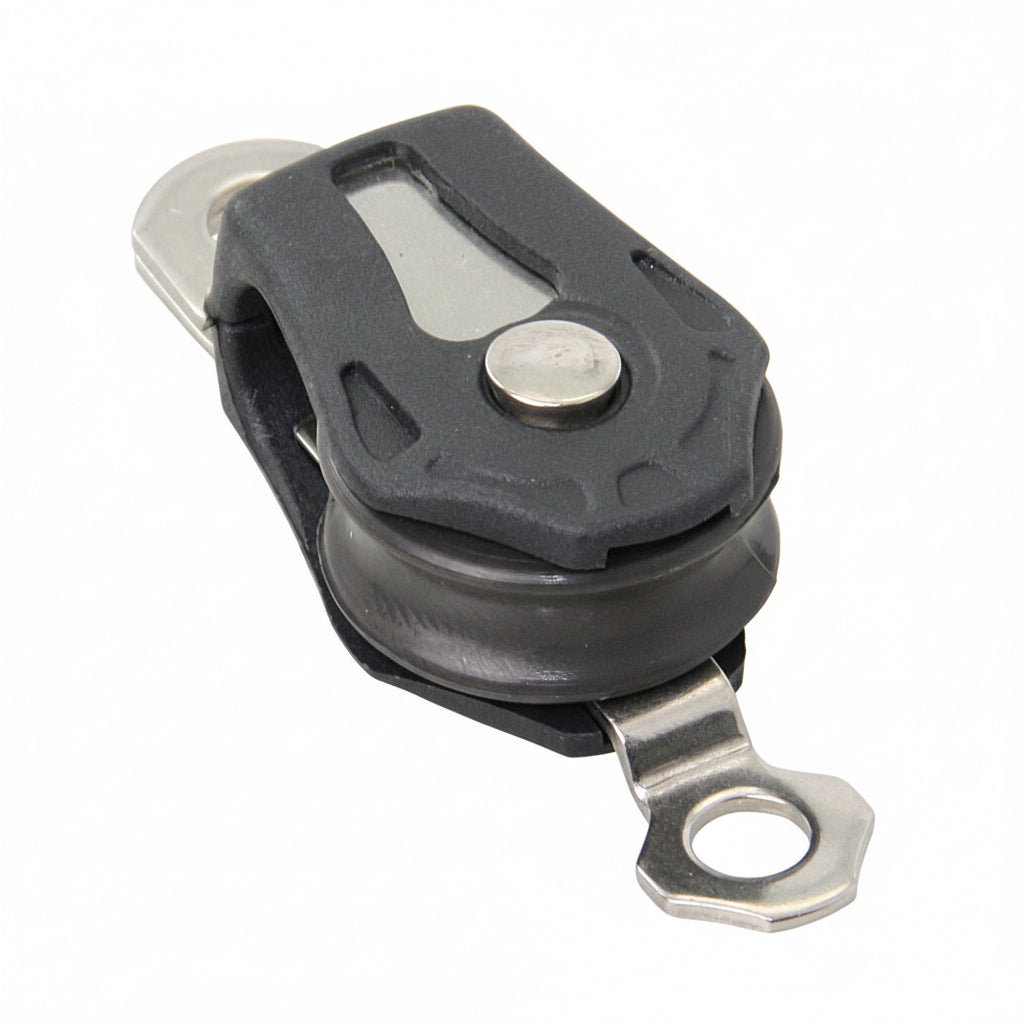

BARTON Lying Block - Professional Lying Block Size Zero
The BARTON rope block is a high-quality horizontal block for optimal rope management. Available in size zero, with either plain bearings or ball bearings. With a breaking load of 550 kg and suitable for ropes up to 5 mm in diameter, this rope block is perfect for a wide range of sailing applications on yachts and sailboats.
The horizontal design allows for flush mounting on decks or other surfaces. Both bearing types guarantee reliable operation under high loads. Ideal for applications requiring a low profile.
Product features
- Horizontal design for flat mounting
- Disc diameter: 20mm
- Disc width: 8mm
- Optional plain bearings or ball bearings
- Breaking load 550 kg for high load capacity
- Suitable for ropes up to 5mm in diameter
- Size Zero with a length of 55mm
- Compact and robust design
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN00160 | Plain bearings | Size Zero | 55.0 | 17 | 5 | 550 |
| BTN10160 | ball bearings | Size Zero | 55.0 | 15 | 5 | 550 |
Technical specifications
Disc diameter 20mm, disc width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminum and composite, horizontal design.
This BARTON bed block combines functionality and durability. Its horizontal design allows for flat mounting with a low profile. Ideal for deck mounting, sheets, and other onboard applications.
BARTON
BARTON Lying Block - Size Zero for ropes up to 5mm
SKU: BTN00160
- Pickup available in Bad Ischl
- Brand-name products with full technical data
- Personal expert advice: office@bootsshop.at
