BARTON

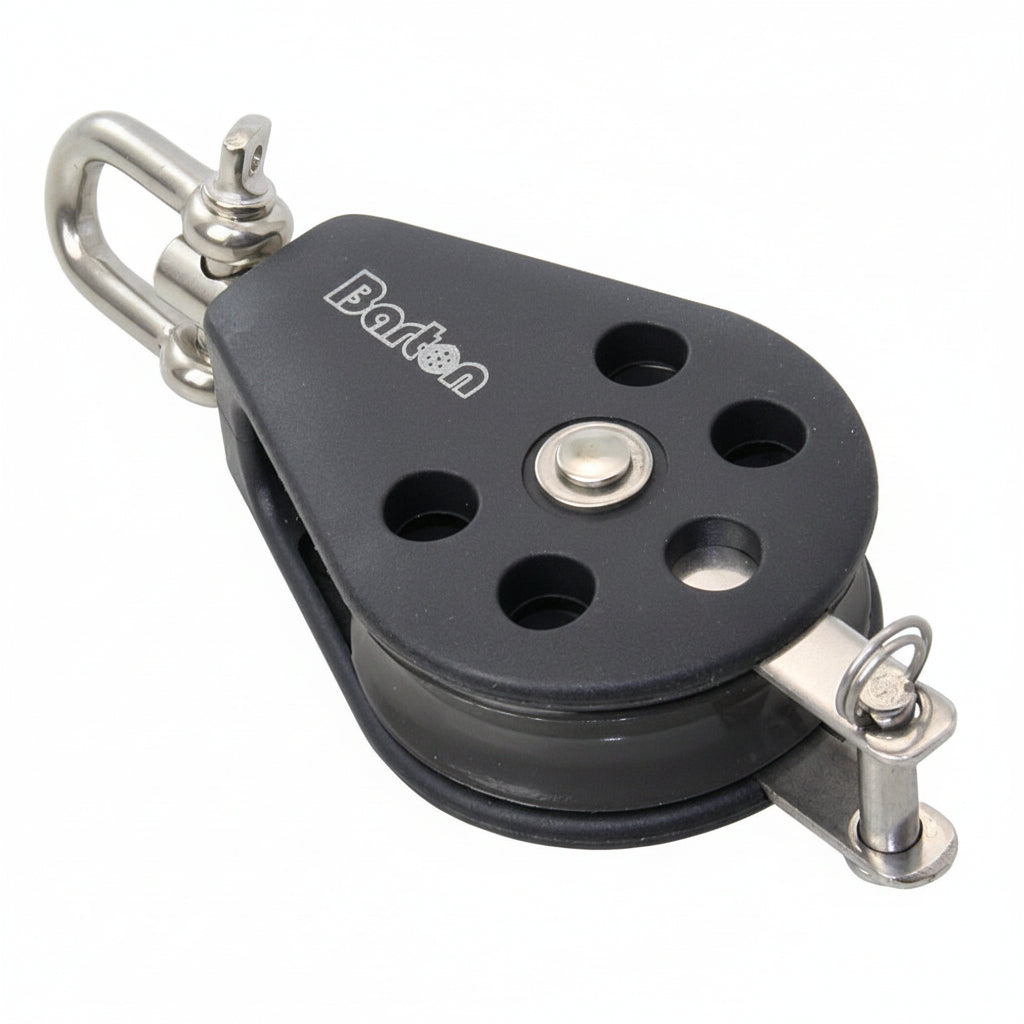

BARTON Single Block with Swivel Eye and Dog Flange - Size 1 for ropes up to 8mm
- Pickup available in Bad Ischl
- Brand-name products with full technical data
- Personal expert advice: office@bootsshop.at
Product details
BARTON Single block with swirl eye and dog's tail - Professional block
The BARTON single block with swivel eye and dogtail is a high-quality block for flexible attachment. Available in size 1, with either a plain bearing or ball bearing. With a breaking load of 710 kg and suitable for ropes up to 8 mm in diameter, this single block is perfect for a wide range of sailing applications on yachts and sailboats.
The swivel eye allows for flexible, rotatable attachment and prevents twisting in the rope, while the dogbone (bottom bracket) offers additional mounting options. Both bearing types guarantee reliable operation under high loads.
Product features
- Swivel eye for flexible, rotatable mounting
- Hundsfott (lower bracket) for additional mounting options
- Disc diameter: 30mm
- Disc width: 11mm
- Optional plain bearings or ball bearings
- Breaking load 710 kg for high load capacity
- Suitable for ropes up to 8mm in diameter
- Size 1 with a length of 84mm
- Compact and robust design
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN01131 | Plain bearings | Size 1 | 84 | 51 | 8 | 710 |
| BTN11131 | ball bearings | Size 1 | 84 | 49 | 8 | 710 |
Technical specifications
Sheave diameter 30mm, sheave width 11mm, for ropes up to 8mm, breaking load 710kg, optionally plain bearing or ball bearing, material: aluminium and composite, with swivel eye and dogtail (bottom bracket).
This BARTON single block combines functionality and durability. The swivel eye allows for flexible, twist-free attachment, while the dogbone provides additional flexibility during installation. Ideal for halyards, sheets, and other onboard applications.
