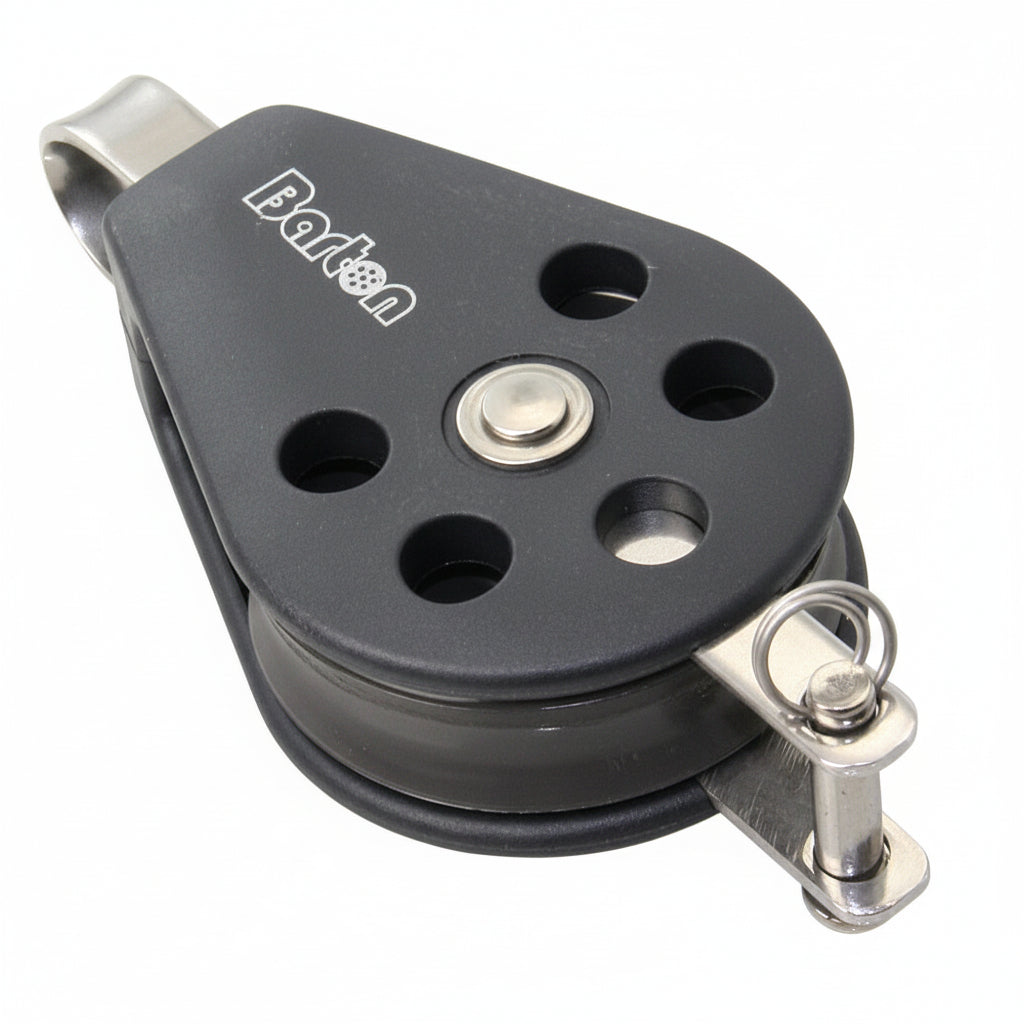

BARTON Single block with fixed eye and dogtail - Size 1 for rope up to 8mm
Regular price
€15,30 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.
BARTON Single block with fixed eye and dog's tail - Professional block
The BARTON single block with fixed eye and dogtail is a high-quality block for secure fastening. Available in size 1, with either a plain bearing or ball bearing. With a breaking strength of 710 kg and suitable for ropes up to 8 mm in diameter, this single block is perfect for a wide range of sailing applications on yachts and sailboats.
The fixed eye allows for secure attachment, while the dogbone (bottom bracket) offers additional mounting options. Both bearing types guarantee reliable operation under high loads.
Product features
- A firm eye for secure fastening
- Hundsfott (lower bracket) for additional mounting options
- Disc diameter: 30mm
- Disc width: 11mm
- Optional plain bearings or ball bearings
- Breaking load 710 kg for high load capacity
- Suitable for ropes up to 8mm in diameter
- Size 1 with a length of 66mm
- Compact and robust design
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN01111 | Plain bearings | Size 1 | 66 | 42 | 8 | 710 |
| BTN11111 | ball bearings | Size 1 | 66 | 40 | 8 | 710 |
Technical specifications
Sheave diameter 30mm, sheave width 11mm, for ropes up to 8mm, breaking load 710kg, optionally plain bearing or ball bearing, material: aluminium and composite, with fixed eye and dogtail (bottom bracket).
This BARTON single block combines functionality and durability. The fixed eye ensures secure attachment, while the dogbone provides additional flexibility during installation. Ideal for halyards, sheets, and other onboard applications.
