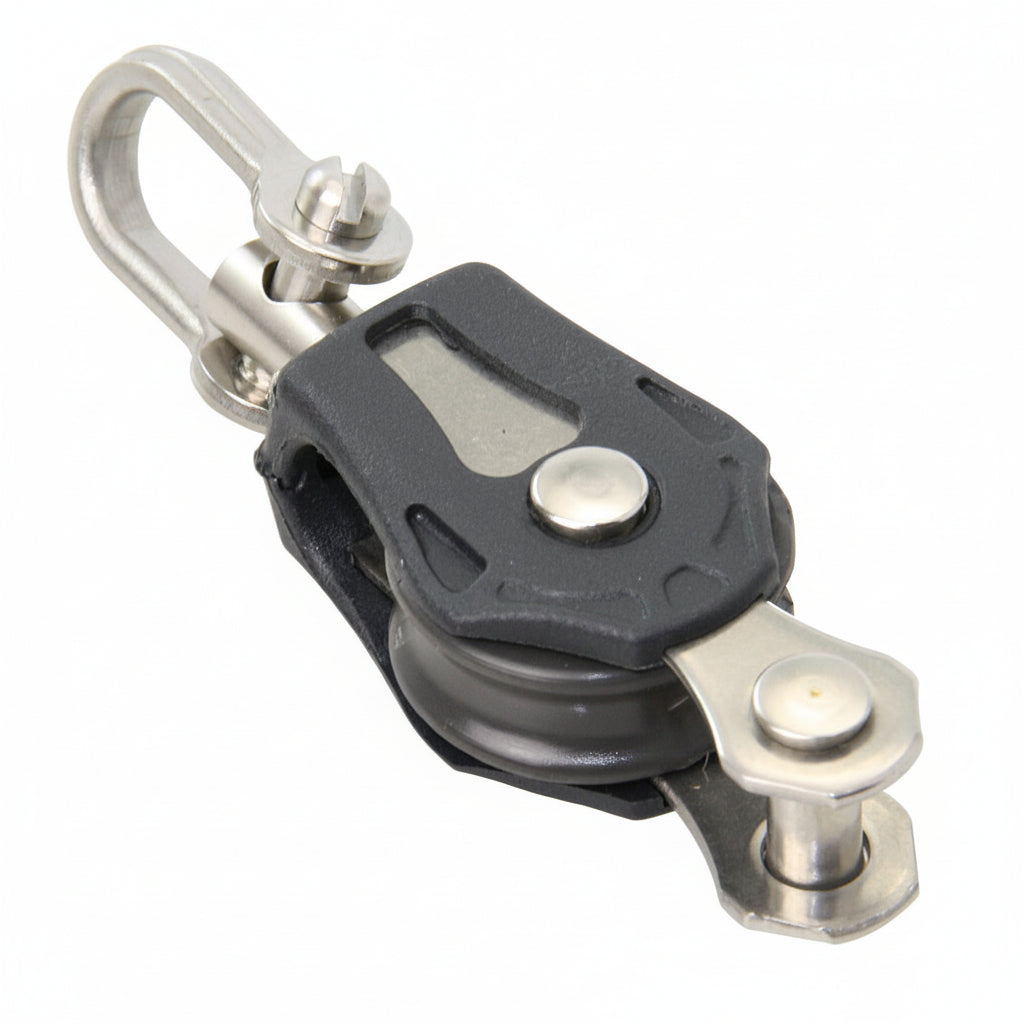

BARTON Single block with swivel eye and dogtail - Size Zero for ropes up to 5mm

SKU: BTN00131
(0)
€27,60 EUR inkl. 20 % MwSt
In stock
lagernd im Zentrallager
execution

Ready to work out of the box!

Our packages are carefully packed and shipped via Austrian Post.

BARTON Single Block with Swirl Eye and Dog's Bottom - Professional Block Size Zero

The BARTON single block with swivel eye and dogtail is a high-quality block for flexible attachment. Available in size zero, with either a plain bearing or ball bearing. With a breaking load of 550 kg and suitable for ropes up to 5 mm in diameter, this single block is perfect for a wide range of sailing applications on yachts and sailboats.

The swivel eye allows for flexible, rotatable attachment and prevents twisting in the rope, while the dogbone (bottom bracket) offers additional mounting options. Both bearing types guarantee reliable operation under high loads.

Product features

  • Swivel eye for flexible, rotatable mounting
  • Hundsfott (lower bracket) for additional mounting options
  • Disc diameter: 20mm
  • Disc width: 8mm
  • Optional plain bearings or ball bearings
  • Breaking load 550 kg for high load capacity
  • Suitable for ropes up to 5mm in diameter
  • Size Zero with a length of 66.7mm
  • Compact and robust design
Article number Storage type Size Length (mm) Weight (g) Rope (mm) Breaking load (kg)
BTN00131 Plain bearings Size Zero 66.7 25 5 550
BTN10131 ball bearings Size Zero 66.7 20 5 550

Technical specifications

Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminium and composite, with swivel eye and dog hook (lower bail).

This BARTON single block combines functionality and durability. The swivel eye allows for flexible, twist-free attachment, while the dogbone provides additional flexibility during installation. Ideal for halyards, sheets, and other onboard applications.
