BARTON Single block with fixed eye - Size Zero for ropes up to 5mm
Regular price
€8,90 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

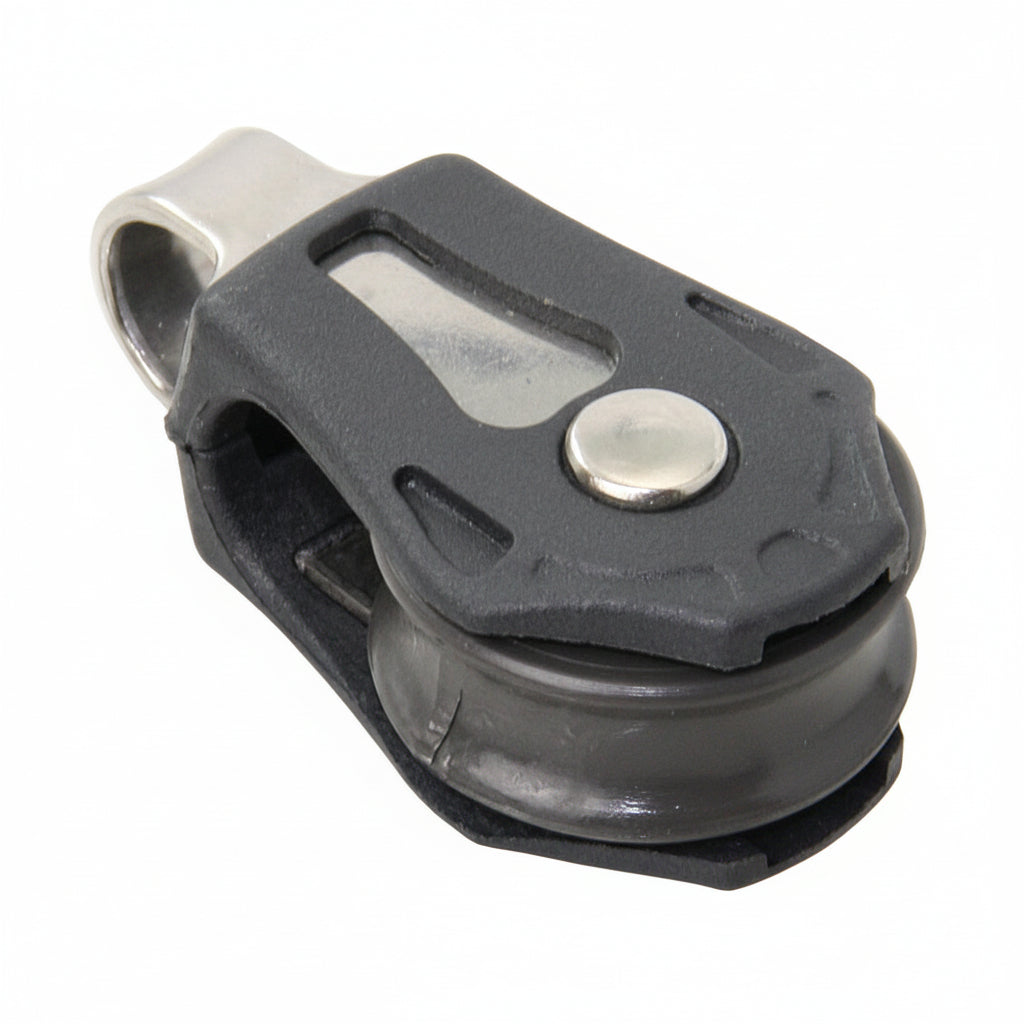

BARTON Single Block with Fixed Eye - Professional Block Size Zero
The BARTON fixed eye block is a high-quality block for secure fastening. Available in size zero, with either a plain bearing or ball bearing. With a breaking strength of 550 kg and suitable for ropes up to 5 mm in diameter, this fixed eye block is perfect for a wide range of sailing applications on yachts and sailboats.
The fixed eye ensures secure mounting. Both bearing types guarantee reliable operation under high loads.
Product features
- A firm eye for secure fastening
- Disc diameter: 20mm
- Disc width: 8mm
- Optional plain bearings or ball bearings
- Breaking load 550 kg for high load capacity
- Suitable for ropes up to 5mm in diameter
- Size Zero with a length of 39.1mm
- Compact and robust design
- Without underwire
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN00110 | Plain bearings | Size Zero | 39.1 | 13 | 5 | 550 |
| BTN10110 | ball bearings | Size Zero | 39.1 | 13 | 5 | 550 |
Technical specifications
Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminum and composite, with fixed eye, without lower bail.
This BARTON single block combines functionality and durability. The fixed eye ensures secure attachment. Ideal for halyards, sheets, and other onboard applications.
