BARTON Single Standing Block Size 5 Ball Bearing - Disc 54mm for Rope up to 12mm
Regular price
€125,30 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

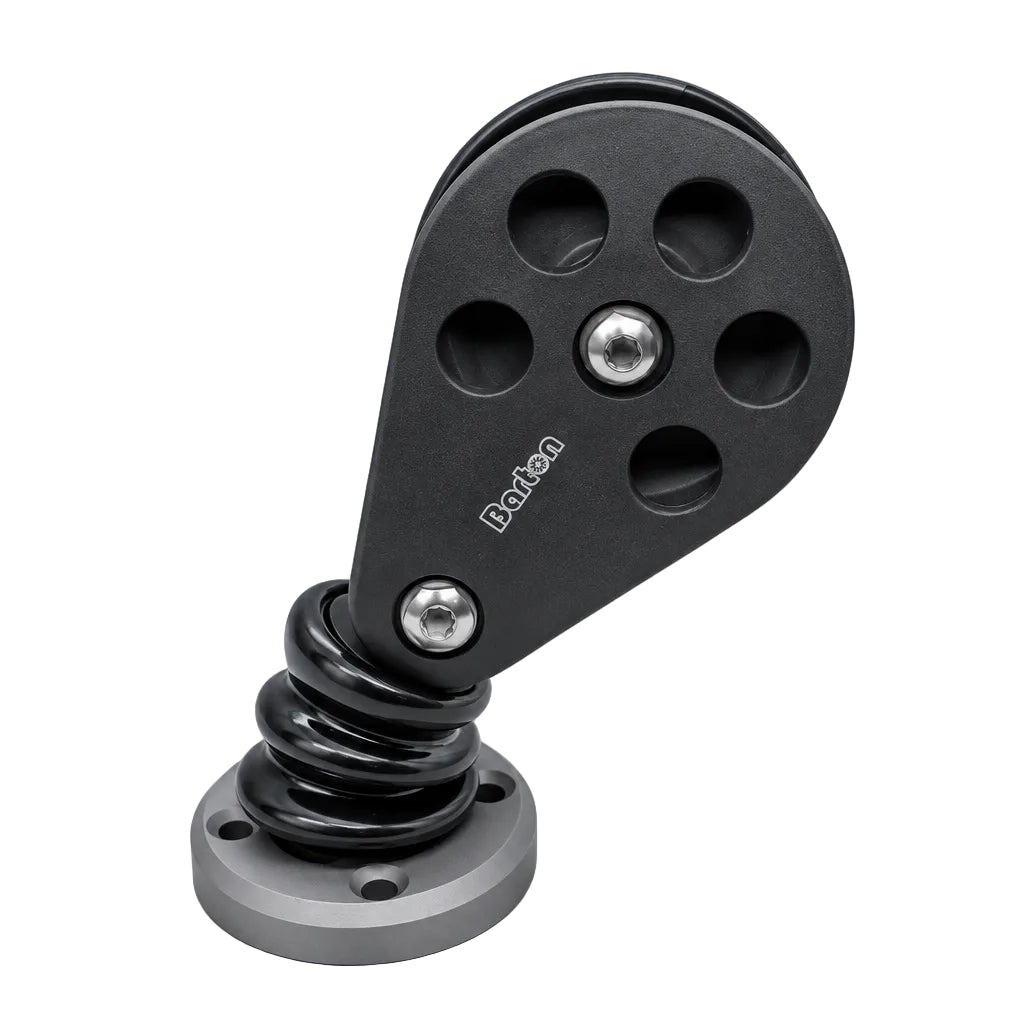

BARTON Single Standing Block Size 5 - Professional Stand Up Block with Ball Bearings
The BARTON single-sided standing block, size 5, is a high-quality, upright block with a 54mm disc diameter. With a breaking load of 1500 kg, this stand-up block is perfectly suited for a wide range of sailing applications on yachts and sailboats where upright mounting is required.
Available with either plain bearings or ball bearings. The ball-bearing version ensures minimal friction and maximum trimming efficiency. Suitable for ropes up to 12 mm in diameter. The upright design allows for optimal rope guidance and prevents twisting.
Product features
- 54mm disc for optimal running
- Ball bearings for smooth running
- Upright design (stand-up) for optimal rope guidance
- Breaking load 1500 kg for high load capacity
- Suitable for ropes up to 12mm in diameter
- Compact design with a length of 140mm
- Optionally with plain bearings or ball bearings
| Article number | Storage type | Size | Length (mm) | Weight (g) | Breaking load (kg) | For ropes up to (mm) |
|---|---|---|---|---|---|---|
| BTN05170 | Plain bearings | Size 5 | 140 | 347 | 1500 | 12 |
| BTN15170 | ball bearings | Size 5 | 140 | 329 | 1500 | 12 |
Technical specifications
Size 5, sheave diameter 54mm, length 140mm, breaking load 1500kg, for ropes up to 12mm, material: aluminium, upright design (stand-up block).
This BARTON single-lever stand block combines functionality and durability. The ball-bearing design reduces the effort required for trimming. The upright construction prevents twisting and ensures optimal rope management. Ideal for halyards, sheets, and other onboard applications.
