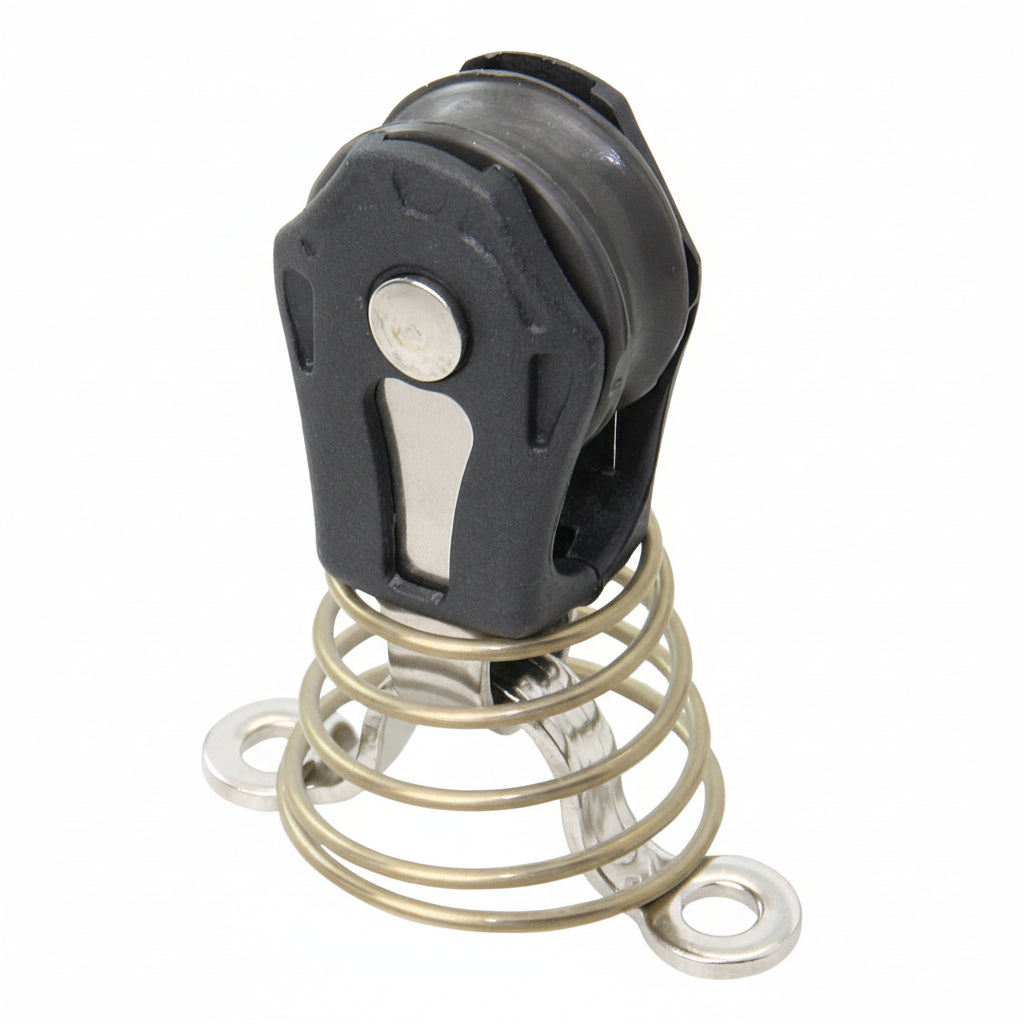

BARTON Single Standing Block - Size Zero for ropes up to 5mm
Regular price
€19,10 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.
BARTON Simple Standing Desk Pad - Professional Upright Desk Pad Size Zero
The BARTON Stand Up Block is a high-quality, upright block for optimal rope management. Available in size zero, with either a plain bearing or ball bearing. With a breaking load of 550 kg and suitable for ropes up to 5 mm in diameter, this stand up block is perfect for a wide range of sailing applications on yachts and sailboats.
The upright design (stand-up) allows for optimal rope guidance and prevents twisting. Both bearing types guarantee reliable operation under high loads.
Product features
- Upright design (stand-up) for optimal rope guidance
- Disc diameter: 20mm
- Disc width: 8mm
- Optional plain bearings or ball bearings
- Breaking load 550 kg for high load capacity
- Suitable for ropes up to 5mm in diameter
- Size Zero with a length of 47mm
- Compact and robust design
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN00170 | Plain bearings | Size Zero | 47.0 | 21 | 5 | 550 |
| BTN10170 | ball bearings | Size Zero | 47.0 | 23 | 5 | 550 |
Technical specifications
Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminum and composite, upright design (stand up).
This BARTON single-leaf rope block combines functionality and durability. Its upright design prevents twisting and ensures optimal rope management. Ideal for halyards, sheets, and other onboard applications.
