BARTON Triple Block with Swivel Eye - Size Zero for ropes up to 5mm
Regular price
€51,70 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

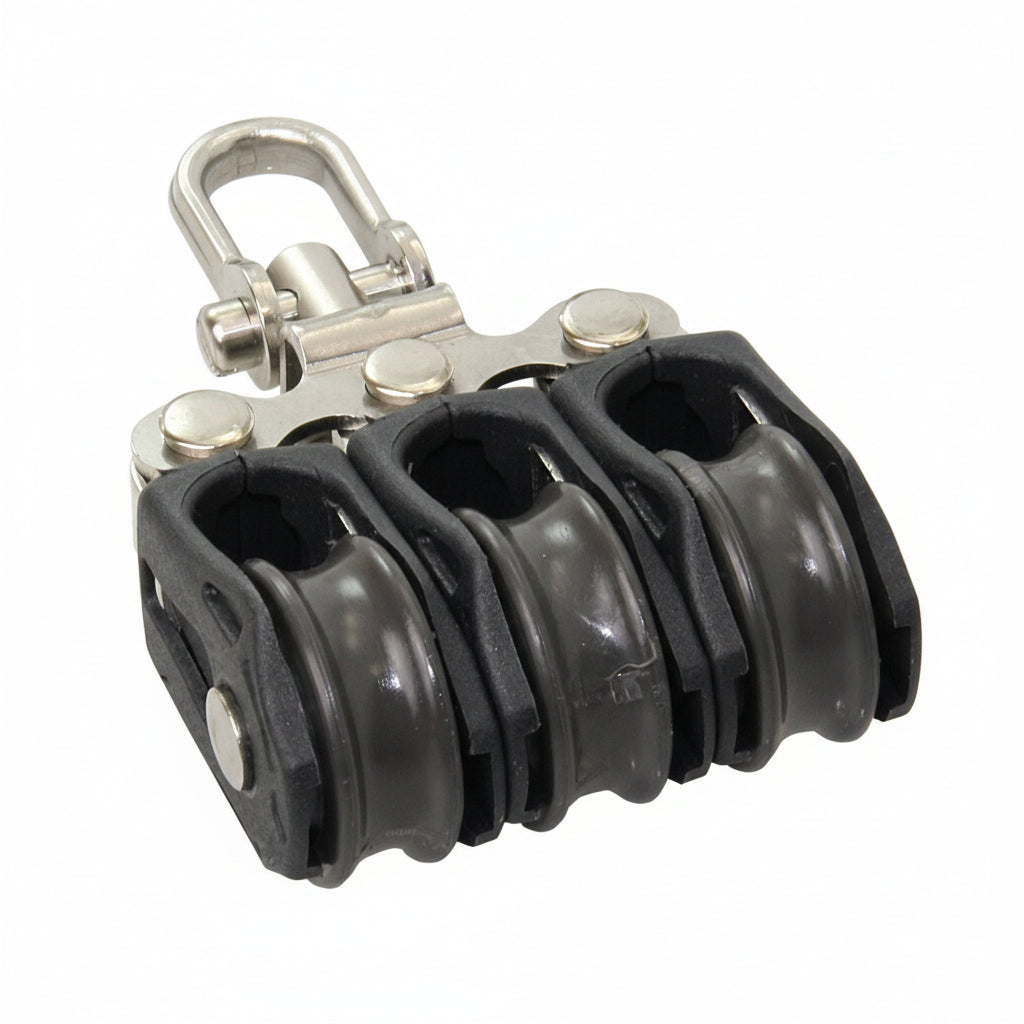

BARTON Triple Block with Swivel Eye - Professional Triple Block Size Zero
The BARTON triple block with swivel eye is a high-quality triple block with three sheaves for maximum power transmission. Available in size zero, with either a plain bearing or ball bearing. With a breaking load of 550 kg and suitable for ropes up to 5 mm in diameter, this triple block is perfect for demanding sailing applications on yachts and sailboats.
The swivel eye allows for flexible, rotating attachment and prevents twisting in the rope. The three 20mm diameter and 8mm wide sheaves ensure optimal power transmission and efficiency during trimming. Both bearing types guarantee reliable operation under high loads.
Product features
- Swivel eye for flexible, rotatable mounting
- Triple block with three discs for maximum power transmission
- Disc diameter: 20mm
- Disc width: 8mm
- Optional plain bearings or ball bearings
- Breaking load 550 kg for high load capacity
- Suitable for ropes up to 5mm in diameter
- Size Zero with a length of 66.7mm
- Compact and robust design
- Without underwire
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN00330 | Plain bearings | Size Zero | 66.7 | 60 | 5 | 550 |
| BTN10330 | ball bearings | Size Zero | 66.7 | 53 | 5 | 550 |
Technical specifications
Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminium and composite, with swivel eye, without lower bail, triple block construction.
This BARTON triple block combines functionality and durability. The swivel eye allows for flexible attachment without twisting. Ideal for halyards, vangs, and other applications requiring high force transmission on board.
