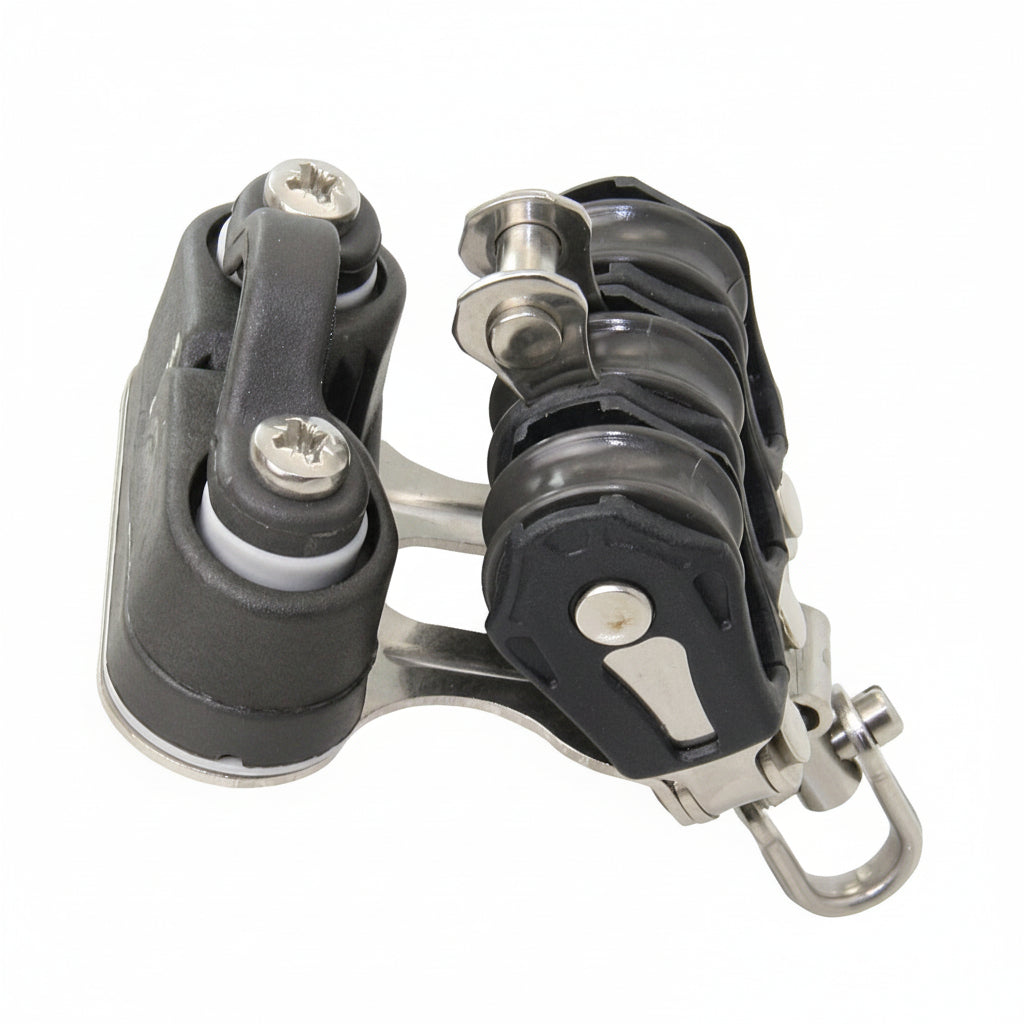

BARTON Triple Block with Swivel Eye, Dog Flange and Clamp - Size Zero for Rope up to 5mm
Regular price
€92,30 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.
BARTON Triple Block with Swivel Eye, Dog Flange and Clamp - Professional Triple Block Size Zero
The BARTON triple block with swivel eye, dogtail, and cleat is a high-quality triple block with three sheaves for maximum power transmission. Available in size zero, with either a plain bearing or ball bearing. With a breaking strength of 550 kg and suitable for ropes up to 5 mm in diameter, this triple block is perfect for demanding sailing applications on yachts and sailboats.
The swivel eye allows for flexible, rotating attachment and prevents twisting in the rope, while the bottom bracket offers additional mounting options. The integrated clamp ensures quick and secure rope clamping. The three 20mm diameter, 8mm wide sheaves provide optimal power transmission and efficiency during trimming. Both bearing types guarantee reliable operation under high loads.
Product features
- Swivel eye for flexible, rotatable mounting
- Hundsfott (lower bracket) for additional mounting options
- Integrated clamp for secure clamping
- Triple block with three discs for maximum power transmission
- Disc diameter: 20mm
- Disc width: 8mm
- Optional plain bearings or ball bearings
- Breaking load 550 kg for high load capacity
- Suitable for ropes up to 5mm in diameter
- Size Zero with a length of 88.5mm
- Compact and robust design
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN00931 | Plain bearings | Size Zero | 88.5 | 110 | 5 | 550 |
| BTN10931 | ball bearings | Size Zero | 88.5 | 102 | 5 | 550 |
Technical specifications
Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminium and composite, with swivel eye and dogtail (bottom bracket), triple block construction.
This BARTON triple block combines functionality and durability. The swivel eye allows for flexible, twist-free attachment, while the dogbone provides additional flexibility during installation. Ideal for halyards, vangs, and other high-force applications on board.
