BARTON Double Block with Fixed Eye and Dog's Tail - Size Zero for ropes up to 5mm
Regular price
€24,70 EUR
inkl. 20 % MwSt
Couldn't load pickup availability
Ready to work out of the box!
Our packages are carefully packed and shipped via Austrian Post.

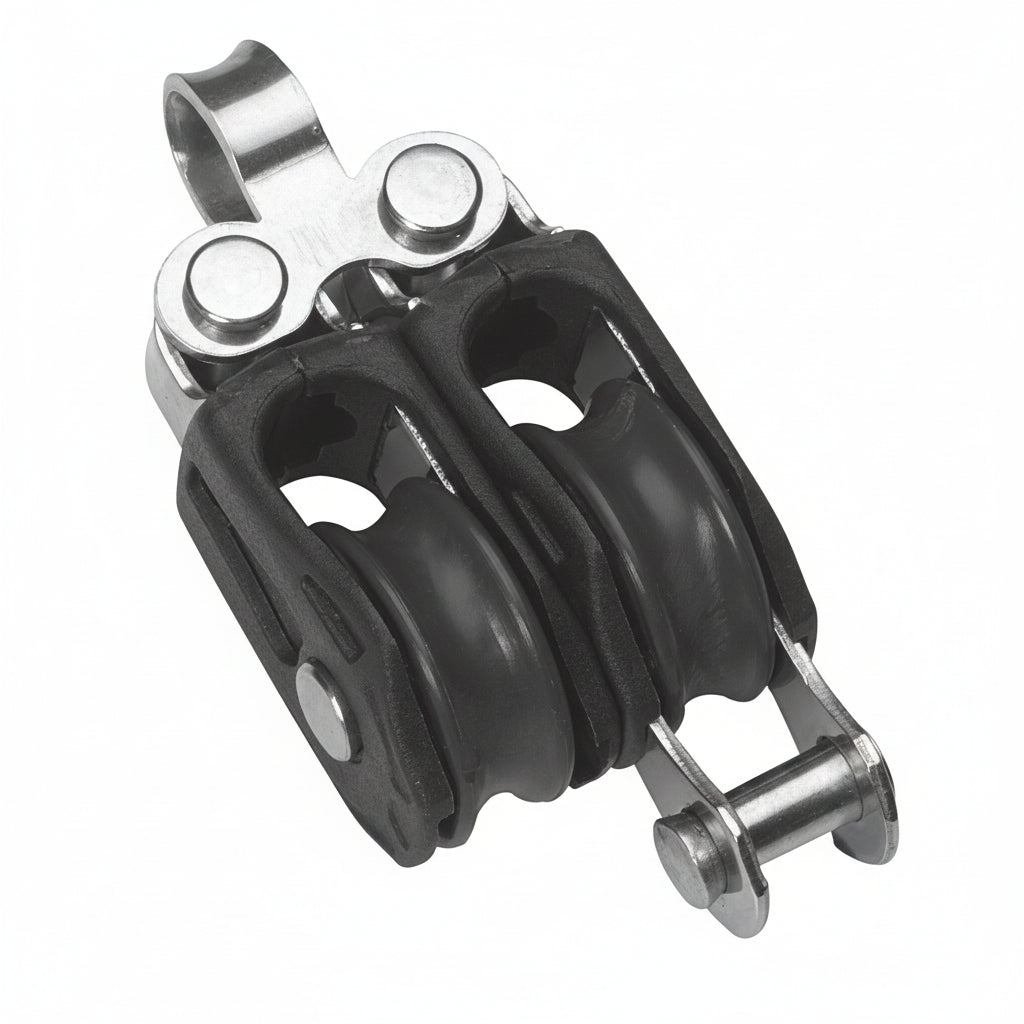

BARTON Double Block with Fixed Eye and Dog's Bottom - Professional Double Block Size Zero
The BARTON double block with fixed eye and hog is a high-quality double block with two sheaves for optimal power transmission. Available in size zero, with either a plain bearing or ball bearing. With a breaking load of 550 kg and suitable for ropes up to 5 mm in diameter, this double block is perfect for demanding sailing applications on yachts and sailboats.
The fixed eyelet ensures secure attachment, while the dogbone (bottom bracket) offers additional mounting options. The two 20mm diameter, 8mm wide discs provide good power transmission and efficient trimming. Both bearing types guarantee reliable operation under heavy loads.
Product features
- A firm eye for secure fastening
- Hundsfott (lower bracket) for additional mounting options
- Double block with two discs for power transmission
- Disc diameter: 20mm
- Disc width: 8mm
- Optional plain bearings or ball bearings
- Breaking load 550 kg for high load capacity
- Suitable for ropes up to 5mm in diameter
- Size Zero with a length of 63.5mm
- Compact and robust design
| Article number | Storage type | Size | Length (mm) | Weight (g) | Rope (mm) | Breaking load (kg) |
|---|---|---|---|---|---|---|
| BTN00211 | Plain bearings | Size Zero | 63.5 | 41 | 5 | 550 |
| BTN10211 | ball bearings | Size Zero | 63.5 | 37 | 5 | 550 |
Technical specifications
Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminium and composite, with fixed eye and dogtail (bottom bracket), double-block construction.
This BARTON double block combines functionality and durability. The fixed eye ensures secure attachment, while the dogbone provides additional flexibility during installation. Ideal for halyards, sheets, and other power-transmitting applications on board.
