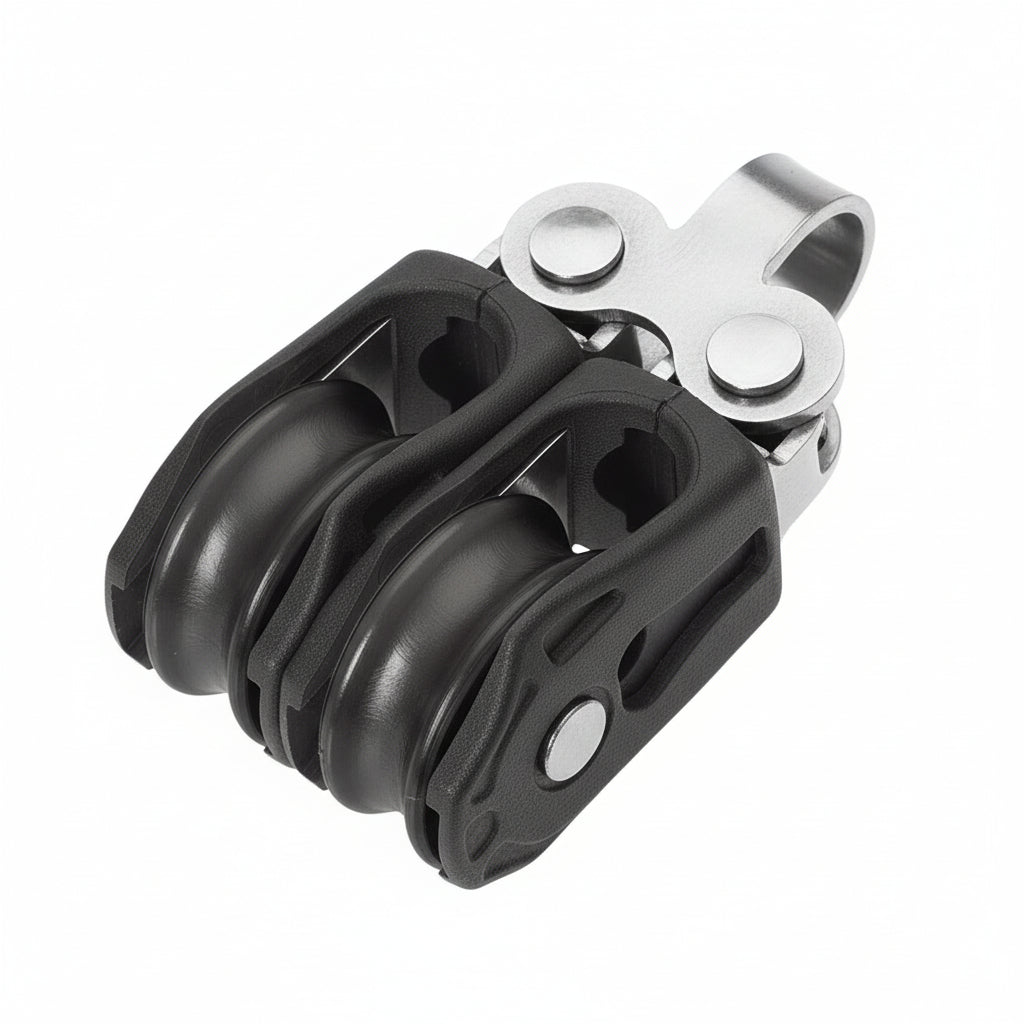

BARTON Double Block with Fixed Eye - Professional Double Block Size Zero

The BARTON double block with fixed eye is a high-quality double block with two sheaves for optimal power transmission. Available in size zero, with either a plain bearing or ball bearing. With a breaking load of 550 kg and suitable for ropes up to 5 mm in diameter, this double block is perfect for demanding sailing applications on yachts and sailboats.

The fixed eyelet ensures secure mounting. The two 20mm diameter and 8mm wide discs provide good power transmission and efficiency during trimming. Both bearing types guarantee reliable operation under high loads.

Product features

• A firm eye for secure fastening
• Double block with two discs for power transmission
• Disc diameter: 20mm
• Disc width: 8mm
• Optional plain bearings or ball bearings
• Breaking load 550 kg for high load capacity
• Suitable for ropes up to 5mm in diameter
• Size Zero with a length of 50.4mm
• Compact and robust design
• Without underwire

Technical specifications

Sheave diameter 20mm, sheave width 8mm, for ropes up to 5mm, breaking load 550kg, optionally plain bearing or ball bearing, material: aluminium and composite, with fixed eye, without lower bail, double block construction.

This BARTON double block combines functionality and durability. The fixed eye ensures secure attachment. Ideal for halyards, sheets, and other power-transmission applications on board.
