Single-acting diaphragm pump for through-deck or bulkhead mounting

The JABSCO Amazon Thrudeck is a single-acting diaphragm pump for through-deck or bulkhead mounting. This versatile hand bilge pump offers a flow rate of up to 75 l/min with 38 mm connections or up to 50 l/min with 25 mm connections, depending on the connection size.

The 38 mm (1-1/2") connections also allow for the pumping of solids. The easily screwed clamping ring provides quick access to the pump chamber for simple maintenance. The 360° rotatable pump head and the 90° swiveling connections offer maximum installation flexibility.

Product features

• Single-acting diaphragm pump for through-deck mounting
• Flow rate up to 75 l/min with 38 mm connections
• Flow rate up to 50 l/min with 25 mm connections
• 38 mm (1-1/2") connections for solid material handling
• Corrosion-resistant materials throughout
• Simply screwed clamping ring for quick access
• 360° rotatable pump head
• 90° swivel connectors
• Self-priming up to 5 meters

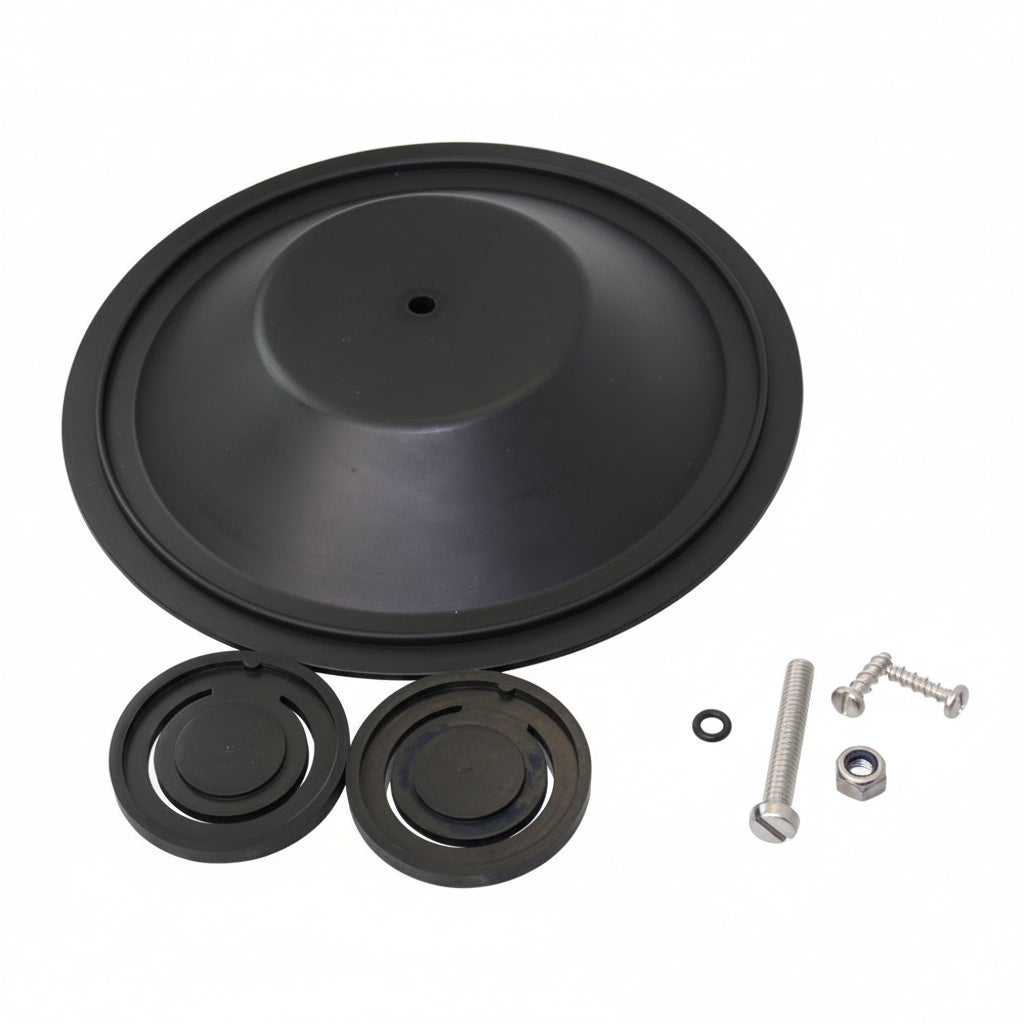

• Service kit and clamping ring available

Technical specifications

Flow rate: 75 l/min (38 mm) / 50 l/min (25 mm), Self-priming: max. 5.0 m, Hose connection: 38 mm (1-1/2") or 25 mm (1"), Dimensions: 25 x 11 x 12 cm, Weight: 1.2 kg, Pump head: 360° rotatable, Connections: 90° swiveling, Material: Corrosion-resistant, Mounting: Through deck or bulkhead

The JABSCO Amazon Thrudeck manual bilge pump is the perfect choice for boat owners looking for a flexible, low-maintenance through-deck bilge pump. With its 360° rotating pump head, 90° swiveling ports, and easy-to-use screw-on clamping ring, it offers maximum flexibility during installation and maintenance. Its ability to pump solids makes it particularly versatile.
